TNS Three phase Automatic Voltage regulator
TNS Three phase Automatic Voltage regulator
TNS Three phase Automatic Voltage regulator

TNS Three phase Automatic Voltage regulator

Overview:
if need any qualification or test report,please email to info@changangroup.com.cn
Inquire Now

TNS Three phase Automatic Voltage regulator

Inquire Now
Description
PCB: With under&over voltage protection,
overheat, overload short-circuit protection,
Delay output, reliability improved.
Transformer: 100% copper/aluminium
transformers, high silicon steel,
temperature protection, PCB Control.
A.C.contactor: Using the best quality-85%
siliver point to make sure long life,
meanwhile to make machine runs siliently.

Fan: Long life of 100,000 hours
automatically start working when the
system temperature reaches a certain
temperature

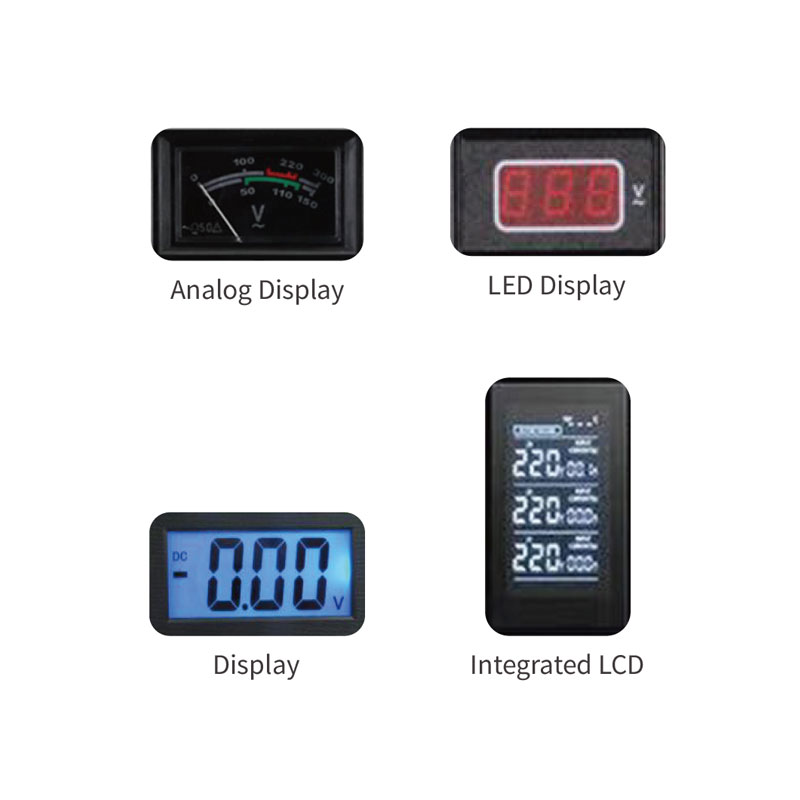

Display: Optional display mode working
indicators to make sure the machine is
normally working in good condition

Parameter
Specification 3kVA 5kVA 8kVA 10kVA 15kVA 20kVA 30kVA 40kVA 50kVA 60kVA 80kVA 100kVA
Input Phase Single phase
Voltage 280V~430V
Frequency 50/60Hz
Output Voltage 380V/400V/440V±2%
Power factor 0.8
Frequency 50/60Hz
Protection Under voltage Yes
Over voltage Yes
Over heat Yes
Adjust Time ≤1S (When input voltage change less than 10%)
Bypass funtion Optional
Overload Yes
Short circuit Yes
Others Insulation Resistance ≥5MΩ
  Waveform Distortion No waveform distortion
Efficiency AC-AC 98%
Acoustic Noise level ≤50dB
Condition Temperature -5℃ ~ +45℃
Humidity 20%~90%
Others Correction speed Less than 1 second when voltage fluction is less than 10%
