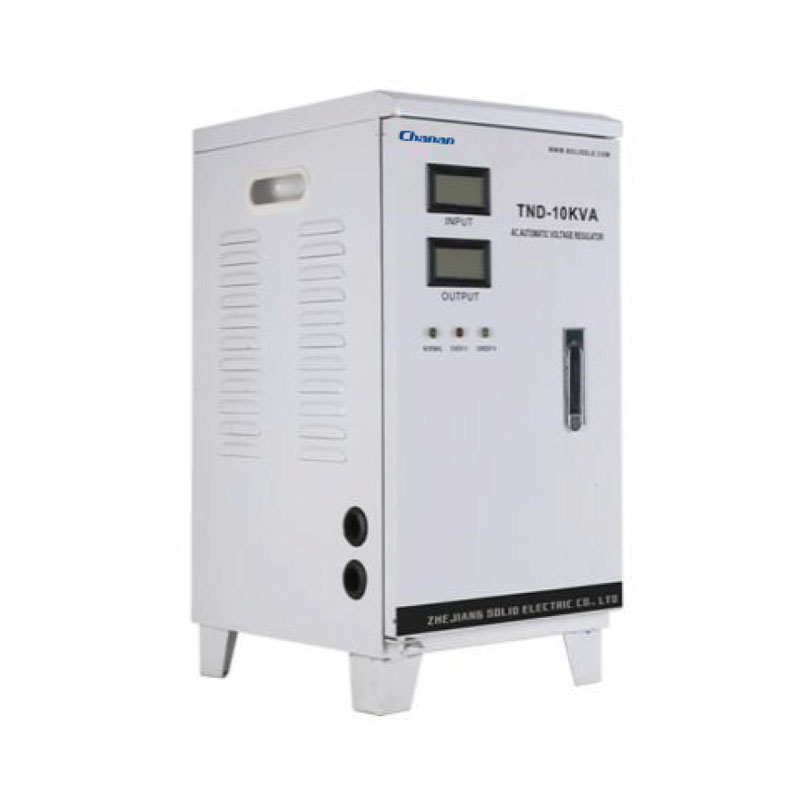

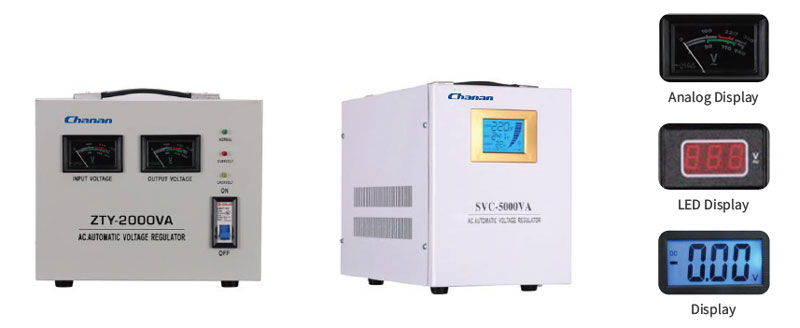

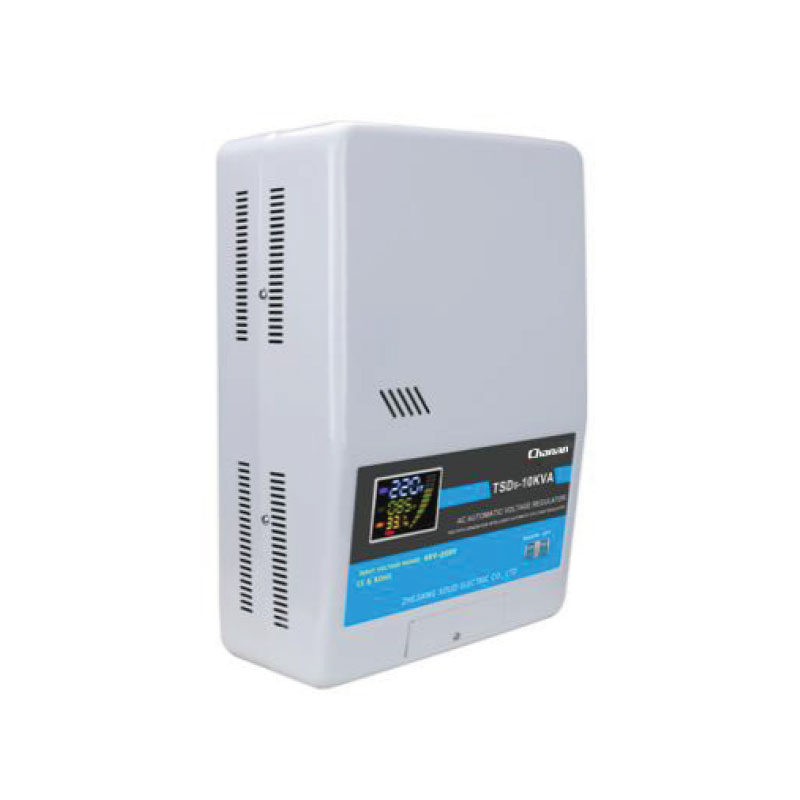

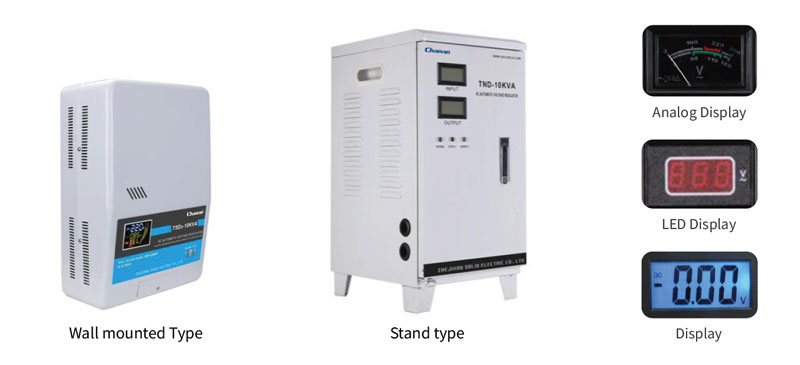

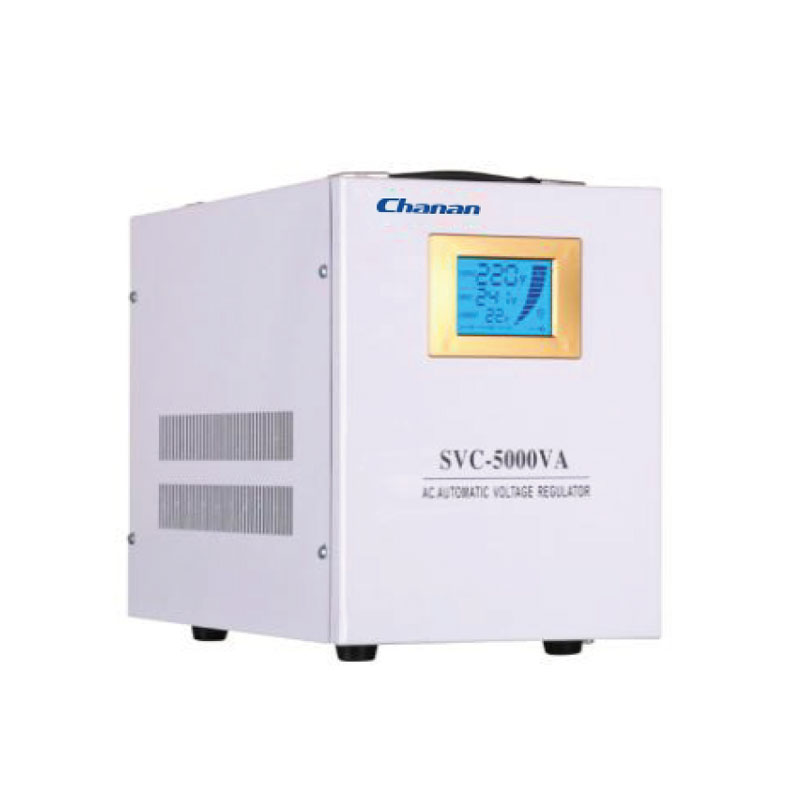

Name: TND AVR Single phase Automatic Voltage regulator
Brand: China Changan
SKU: 00269
Rating: 4.1 (185 reviews)

Description

Capacity≤1500VA

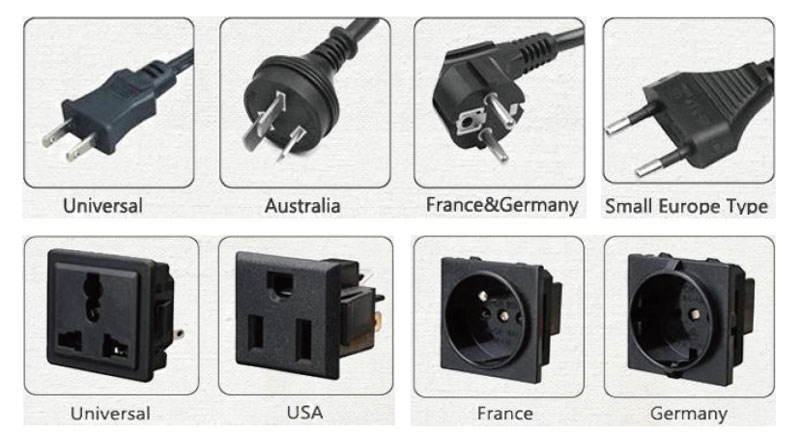

Pulg and socket

Capacity≥2000VA

Terminal input and output

Parameter

Specification		500VA	1000VA	1500VA	2000VA	3000VA	5000VA
Input	Phase	Single phase
	Voltage	150V~250V/130V~250V/100V~270V/80V~270V
	Frequency	50/60Hz
Output	Voltage	220~240V±8%
	Power factor	0.8
	Frequency	50/60Hz
Protection	Under voltage	Yes
	Over voltage	Yes
	Over heat	Yes
	Adjust Time	≤1S(When input voltage change less than 10%)
	Bypass funtion	Optional
	Overload	Yes
	Short circuit	Yes
Others	Insulation Resistance	≥5MΩ
	Waveform Distortion	No waveform distortion
Efficiency	AC-AC	98%
Acoustic	Noise level	≤50dB
Condition	Temperature	-5°C ~ +45°C
	Humidity	20%~90%
Others	Correction speed	Less than 1 second when voltage fluction is less than 10%

Specification		8000VA	10kVA	15kVA	20kVA	30kVA	50kVA(s)
Input	Phase	Single phase
	Voltage	150V~250V/130V~250V/100V~270V/80V~270V
	Frequency	50/60Hz
Output	Voltage	220~240V±8%
	Power factor	0.8
	Frequency	50/60Hz
Protection	Under voltage	Yes
	Over voltage	Yes
	Over heat	Yes
	Adjust Time	≤1S(When input voltage change less than 10%)
	Bypass funtion	Optional
	Overload	Yes
	Short circuit	Yes
Others	Insulation Resistance	≥5MΩ
	Waveform Distortion	No waveform distortion
Efficiency	AC-AC	98%
Acoustic	Noise level	≤50dB
Condition	Temperature	-5°C ~ +45°C
	Humidity	20%~90%
Others	Correction speed	Less than 1 second when voltage fluction is less than 10%
