YB6 US Type Pad Mounted Secondary Substation

Product Summary

YB6 prefabricated substation, as an important power supply unit in cable distribution network, is a complete set prefabricated product integrated by high voltage control, protection, transformation and distribution equipment, which is widely used in urban and rural distribution network.

The high voltage load switch and high voltage fuse are placed in the transformer oil, which have two structural forms: share the same container with the transformer or separate container. The oil tank is fully sealed with oil temperature meter, oil level meter, pressure gauge, pressure release valve, oil discharge valve and other components to monitor the operation of the. transformer. The product is divided into ring network type, terminal type and power supply side. The HV side adopts the pluggable fuse, and the fuse's fuse does not affect the performance of the transformer oil. According to the different low voltage feeder scheme, products are divided into standard, enhanced and comprehensive three kinds of shell form, users and design units in the selection, it is more flexible and more economical.

Environmental Conditions

1. Altitude: No more than 1000m.

2. Ambient Temperature: No more than +40℃ and no less than 45℃.

3. Relative Humidity: the average daily value is no more than 95%, the average monthly value is no more than 90%.

4. Earthquake proof Level: Horizontal Accelerations <0.3g, Vertical Acceleration<0. 15g.

5. Installation Location: Well-ventilation, chemical corrosion and violent vibration for product installed place. Vertical slope of less than 3 degree.

Product Features

1. Compact structure and small volume. It is only about 1/3 of EU type prefabricated substation with same capacity, which greatly reduces the floor space.

2. Fully. sealed and insulated structure, which protects personal safety reliably.

3. The high voltage connection can be used in the ring network, and also can be used in the terminal, the power supply mode is flexible and the reliability is high.

4. The transformer has excellent performance, with law loss, low noise, low temperature rise, strong overload ability and strong ability to resist short circuit impact.

5. To meet the requirements of all kinds of low voltage feed out, it can be selected according to the scheme and also can be designed by itself.

6. The cable joints can be plugged and unplugged with load and play the role of the disconnecting switch.

Technical Data

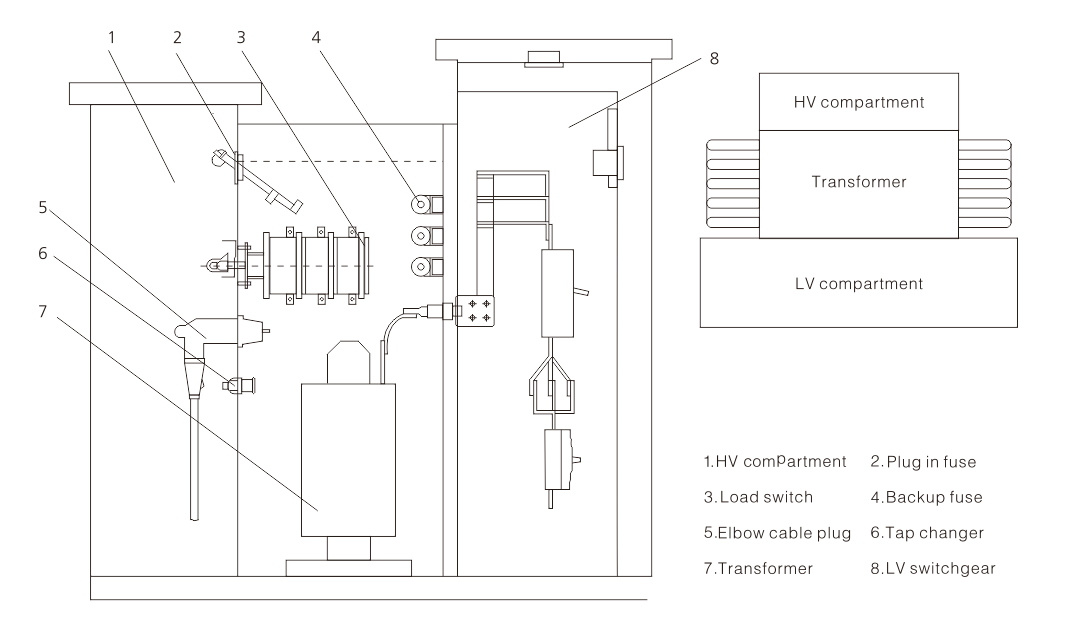

Schematic diagram of structure
