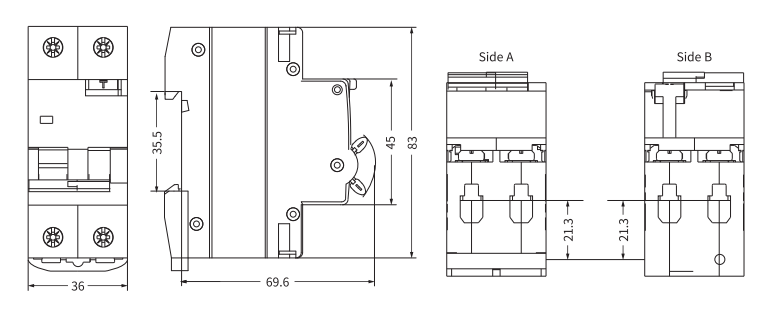

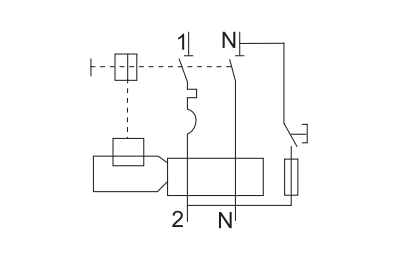

CAL8-40M Magnetic type RCBO comply with IEC61009-1 standard, rated breaking capacity 6kA, rated tripping current can reach 300mA, Position Indicator, Bi-Connect Termination on both sides, Compatible with standard & Philip head screwdriver,35mm² terminal suitable for copper as well as aluminium cable.
| Standard | IEC/EN61009-1 |
| Protection | Ground fault, Overcurrent and short circuit, Over-voltage(selectable) |
| Type of trip | Ground fault: Electro-magnetic |
| Overload and short circuit: Thermo-magnetic | |
| Type of protection (electric leakage) | AC, A |
| No. of poles | 1P+N 2module, N line with disconnected |
| Rated currents (In) | 6,10,16,20,25,32,40A |
| Rated sensitivity currents I△n | 10,30,100,300mA |
| Residual current off-time under I△n | ≤0.1s |
| Rated residual making and breaking capacity(I△m) | 500A (In≤50A), 10In (In＞50A) |
| Rated voltage (Ue) | 230/240V~ |
| Rated frequency | 50/60Hz |
| Rated breaking capacity | 6,000A |
| Rated impulse with standard voltage (1.5/50) Uimp | 4,000V |
| Dielectric test voltage at Ind. Freq. for 1min | 2kV |
| Thermal release characteristic | (1.13-1.45) x In |
| Magnetic release characteristic | B:(3-5) x In, C:(5-10) x In |
| Electrical life | 4,000Cycles |
| Mechanical life | 10,000Cycles |
| Contact position indicator | Yes |
| Ground fault indicator | Yes |
| Protection degree | IP20 |
| Ambient temperature | -25℃ to +40℃, Max.95% humidity |
| Terminal connection type | Cable/Pin-type busbar/Fork-type busbar |
| Max. terminal size for cable | 25mm2 |
| Max. tightening torque | 2.5N.m |
| Installation | Mounting on 35mm DIN rail |
| Connection | From top and bottom |
