CAL3-40S Electro type RCBO is mainly used for AC 50Hz or 60Hz, rated voltage 230V or below and rated working current 40A or below and immediately cut off power supply once someone suffers from electric shock or leakage current above specified value. The circuit-breaker can also function as overload and short-circuit protection and unfrequented changeover of line under normal condition.

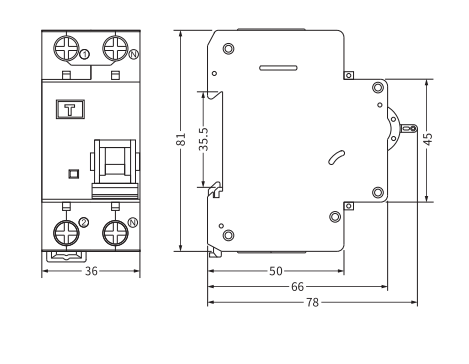

| Standard | IEC/EN61009-1 |
| Protection | Ground fault, Overcurrent and short circuit, Over-voltage(selectable) |
| Type of trip | Ground fault: Electronic |
| Overload and short circuit: Thermo-magnetic | |
| Type of protection (electric leakage) | AC, A |
| No. of poles | 1P+N 2module, N line with disconnected |
| Rated currents (In) | 6,10,16,20,25,32,40A |
| Rated sensitivity currents I△n | 10,30,100,300mA |
| Residual current off-time under I△n | ≤0.1s |
| Rated residual making and breaking capacity(I△m) | 500A (In≤50A), 10In (In＞50A) |
| Rated voltage (Ue) | 230/240V~ |
| Rated frequency | 50/60Hz |
| Rated breaking capacity | 4,500A |
| Rated impulse with standard voltage (1.5/50) Uimp | 4,000V |
| Dielectric test voltage at Ind. Freq. for 1min | 2kV |
| Thermal release characteristic | (1.13-1.45) x In |
| Magnetic release characteristic | B:(3-5) x In, C:(5-10) x In |
| Electrical life | 4,000Cycles |
| Mechanical life | 10,000Cycles |
| Contact position indicator | Yes |
| Protection degree | IP20 |
| Ambient temperature | -25℃ to +40℃, Max.95% humidity |
| Terminal connection type | Cable/Pin-type busbar |
| Max. terminal size for cable | 25mm2 |
| Max. tightening torque | 2.5N.m |
| Installation | Mounting on 35mm DIN rail |
| Connection | From top |
