A cable lug is a component of an electrical device that connects the cable to the device terminals that simplifies the assembly of personnel, maintenance, and repair processes.
Depending on the application and the industry, the usage of cable lugs differs. There are several alternatives for every installation framework. Types of lugs are categorized on the basis of their body structures, insulation and cross-sections. Mainly include Copper lugs, Bimetallic Lugs, Mechanical lugs, Pin type lug.
Copper lugs are ideal in large gauge applications for power draw or grounding. The wire can be soldered or crimped to each copper lug. One end of the copper lug takes the cable by soldering, welding, or crimping, depending on the type of lug used. The other end of the copper lug is secured to a matching termination or connection point by a bolt, screw, or spring clip. Copper Cable Lugs offers easy installation and long-term dependability.

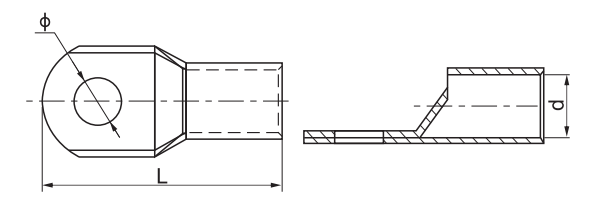

JM(JGK) Copper Lugs
Material: E-Cu
Surface treatment: Tin-plated
Product Property: It is used to connect the copper conductor end. It has a viewing window to check the conductor's location.
|
Model |
Dimensions(mm) |
||
|
L |
d |
Φ |
|
|
JM(JGK) 1.5-4 |
18 |
1.9 |
4.2 |
|
JM(JGK) 1.5-5 |
18 |
1.9 |
5.2 |
|
JM(JGK) 1.5-6 |
18 |
1.9 |
6.5 |
|
JM(JGK) 2.5-4 |
19 |
2.8 |
4.3 |
|
JM(JGK) 2.5-5 |
20 |
2.8 |
5.2 |
|
JM(JGK) 2.5-6 |
20 |
2.6 |
6.5 |
|
JM(JGK) 4-4 |
19.5 |
3.2 |
4.3 |
|
JM(JGK) 4-5 |
20.5 |
3.2 |
5.2 |
|
JM(JGK) 4-6 |
22 |
3.2 |
6.5 |
|
JM(JGK) 6-5 |
22 |
3.7 |
5.2 |
|
JM(JGK) 6-6 |
23 |
3.7 |
6.5 |
|
JM(JGK) 6-8 |
24 |
3.7 |
8.4 |
|
JM(JGK) 6-10 |
24 |
3.7 |
10.3 |
|
JM(JGK) 10-6 |
24 |
4.5 |
6.5 |
|
JM(JGK) 10-8 |
24 |
4.5 |
8.4 |
|
JM(JGK) 10-10 |
26.5 |
4.5 |
10.3 |
|
JM(JGK) 16-6 |
27.5 |
5.7 |
6.5 |
|
JM(JGK) 16-8 |
29.5 |
5.7 |
8.4 |
|
JM(JGK) 16-10 |
30 |
5.7 |
10.5 |
|
JM(JGK) 25-6 |
32.5 |
7.2 |
6.5 |
|
JM(JGK) 25-8 |
33 |
7.2 |
8.4 |
|
JM(JGK) 25-10 |
34 |
7.2 |
10.5 |
|
JM(JGK) 25-12 |
37 |
7.2 |
13 |
|
JM(JGK) 35-6 |
36 |
8.5 |
6.5 |
|
JM(JGK) 35-8 |
37 |
8.5 |
8.5 |
|
JM(JGK) 35-10 |
38 |
8.5 |
10.5 |
|
JM(JGK) 35-12 |
38 |
8.5 |
13 |
|
JM(JGK) 50-6 |
41 |
9.8 |
6.5 |
|
JM(JGK) 50-8 |
42.5 |
9.8 |
8.5 |
|
JM(JGK) 50-10 |
44 |
9.8 |
10.5 |
|
JM(JGK) 50-12 |
44 |
9.8 |
13 |
|
JM(JGK) 50-14 |
44 |
9.8 |
14.7 |
|
JM(JGK) 70-8 |
48.5 |
11.5 |
8.5 |
|
JM(JGK) 70-10 |
50 |
11.5 |
10.5 |
|
JM(JGK) 70-12 |
50 |
11.5 |
13 |
|
JM(JGK) 95-8 |
57 |
13.7 |
8.5 |
|
JM(JGK) 95-10 |
57 |
13.7 |
10.5 |
|
JM(JGK) 95-12 |
57 |
13.7 |
13 |
|
JM(JGK) 95-14 |
57 |
13.7 |
15 |
|
JM(JGK) 95-16 |
57 |
13.7 |
17 |
|
JM(JGK) 120-10 |
61.5 |
15 |
10.5 |
|
JM(JGK) 120-12 |
63 |
15 |
13 |
|
JM(JGK) 120-14 |
63 |
15 |
14.7 |
|
JM(JGK) 120-16 |
63.5 |
15 |
17 |
|
JM(JGK) 120-20 |
67.5 |
15 |
21 |
|
JM(JGK) 150-10 |
71 |
16.7 |
10.5 |
|
JM(JGK) 150-12 |
71 |
16.7 |
13 |
|
JM(JGK) 150-14 |
71 |
16.7 |
14.7 |
|
JM(JGK) 150-16 |
71 |
16.7 |
17 |
|
JM(JGK) 185-10 |
77 |
19.2 |
10 |
|
JM(JGK) 185-12 |
77 |
19.2 |
13 |
|
JM(JGK) 185-14 |
77.5 |
19.2 |
14.7 |
|
JM(JGK) 185-16 |
79 |
19.2 |
17 |
|
JM(JGK) 185-18 |
79 |
19.2 |
18.7 |
|
JM(JGK) 185-20 |
79 |
19.2 |
21 |
|
JM(JGK) 240-10 |
89.5 |
21 |
10.5 |
|
JM(JGK) 240-12 |
89.5 |
21 |
13 |
|
JM(JGK) 240-14 |
90 |
21 |
14.7 |
|
JM(JGK) 240-16 |
91 |
21 |
17 |
|
JM(JGK) 240-20 |
92 |
21 |
21 |
|
JM(JGK) 300-10 |
100 |
24 |
10.5 |
|
JM(JGK) 300-12 |
100 |
24 |
13 |
|
JM(JGK) 300-16 |
100 |
24 |
17 |
|
JM(JGK) 300-20 |
102 |
24 |
21 |
|
JM(JGK) 400-12 |
111 |
27 |
13 |
|
JM(JGK) 400-16 |
111 |
27 |
17 |
|
JM(JGK) 400-18 |
113 |
27 |
18.5 |
|
JM(JGK) 400-20 |
113 |
27 |
21 |
|
JM(JGK) 500-16 |
123 |
30 |
17 |
|
JM(JGK) 500-20 |
123 |
30 |
21 |
|
JM(JGK) 630-8/4 |
135 |
35 |
8.5 |
|
JM(JGK) 630-10/4 |
135 |
35 |
10.5 |
|
JM(JGK) 630-16 |
135 |
35 |
17 |
|
JM(JGK) 630-20 |
135 |
35 |
21 |
|
JM(JGK) 800-20 |
170 |
39 |
21 |
|
JM(JGK) 800-22 |
170 |
39 |
23 |
|
JM(JGK) 1000-20 |
200 |
44 |
21 |
|
JM(JGK) 1000-22 |
200 |
44 |
23 |

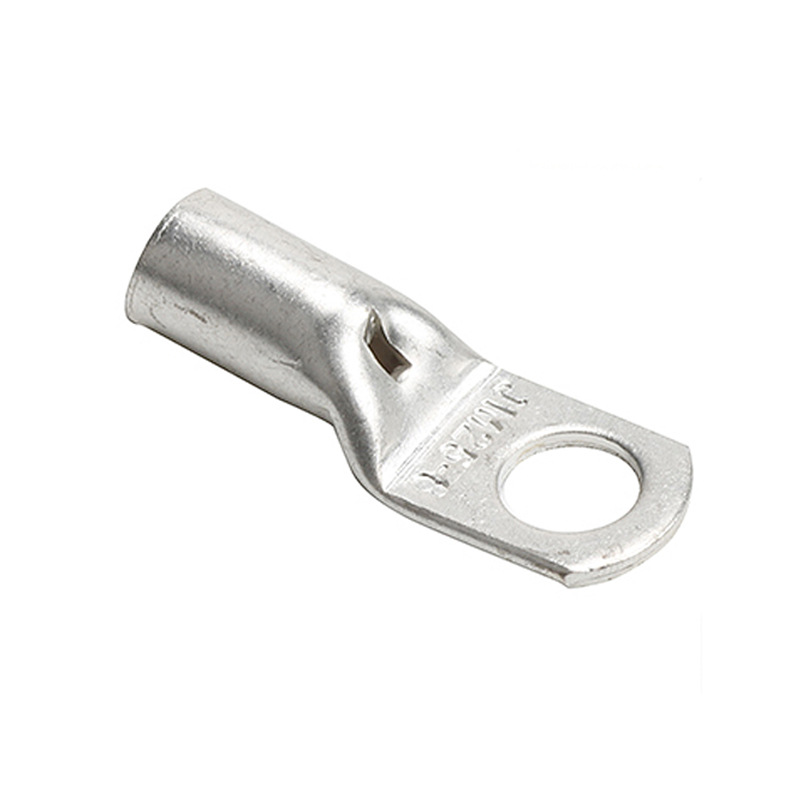

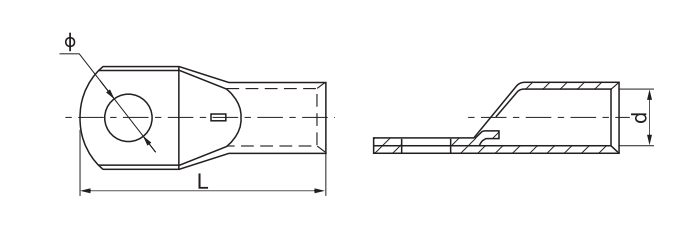

JGY Copper Lugs
It is suitable for the connection between the copper conductor of the power cable type wire with a nominal cross-section of 1.5-1000mm² and the electrical equipment. Features of copper terminal: It is made of high-purity T2 copper tube with a copper content of >99.9%. The long-term working temperature is -50°C-150°C, and the surface is tin-plated.
|
Type |
Dimensions(mm) |
||
|
L |
d |
Φ |
|
|
JM(JGY) 6-5 |
25 |
3.7 |
5.2 |
|
JM(JGY) 6-6 |
25 |
3.7 |
6.5 |
|
JM(JGY) 6-8 |
25 |
3.7 |
8.4 |
|
JM(JGY) 10-5 |
26 |
4.5 |
5.3 |
|
JM(JGY) 10-6 |
26 |
4.5 |
6.5 |
|
JM(JGY) 10-8 |
26 |
4.5 |
8.4 |
|
JM(JGY) 10-10 |
28 |
4.5 |
10.3 |
|
JM(JGY) 16-6 |
28.5 |
5.7 |
6.5 |
|
JM(JGY) 16-8 |
30.5 |
5.7 |
8.5 |
|
JM(JGY) 16-10 |
31 |
5.7 |
10.5 |
|
JM(JGY) 25-6 |
35 |
7.2 |
6.5 |
|
JM(JGY) 25-8 |
35 |
7.2 |
8.4 |
|
JM(JGY) 25-10 |
35 |
7.2 |
10.5 |
|
JM(JGY) 35-6 |
37.5 |
8.5 |
6.5 |
|
JM(JGY) 35-8 |
38 |
8.5 |
8.5 |
|
JM(JGY) 35-10 |
39 |
8.5 |
10.5 |
|
JM(JGY) 35-12 |
39 |
8.5 |
13 |
|
JM(JGY) 50-6 |
43.5 |
9.8 |
6.5 |
|
JM(JGY) 50-8 |
45 |
9.8 |
8.5 |
|
JM(JGY) 50-10 |
45 |
9.8 |
10.5 |
|
JM(JGY) 50-12 |
45 |
9.8 |
13 |
|
JM(JGY) 50-14 |
45 |
9.8 |
14.5 |
|
JM(JGY) 70-8 |
50 |
11.5 |
8.5 |
|
JM(JGY) 70-10 |
51.5 |
11.5 |
10.5 |
|
JM(JGY) 70-12 |
51.5 |
11.5 |
13 |
|
JM(JGY) 95-8 |
58.5 |
13.7 |
8.5 |
|
JM(JGY) 95-10 |
58.5 |
13.7 |
10.5 |
|
JM(JGY) 95-12 |
58.5 |
13.7 |
13 |
|
JM(JGY) 95-14 |
59 |
13.7 |
15 |
|
JM(JGY) 120-10 |
63.5 |
15 |
10.5 |
|
JM(JGY) 120-12 |
65 |
15 |
13 |
|
JM(JGY) 120-14 |
65 |
15 |
14.7 |
|
JM(JGY) 120-16 |
66.5 |
15 |
17 |
|
JM(JGY) 150-10 |
73 |
16.7 |
10.5 |
|
JM(JGY) 150-12 |
73 |
16.7 |
13 |
|
JM(JGY) 150-14 |
73 |
16.7 |
14.7 |
|
JM(JGY) 150-16 |
73 |
16.7 |
17 |
|
JM(JGY) 185-10 |
80 |
19.2 |
10.5 |
|
JM(JGY) 185-12 |
80 |
19.2 |
13 |
|
JM(JGY) 185-14 |
80 |
19.2 |
14.7 |
|
JM(JGY) 185-16 |
80 |
19.2 |
17 |
|
JM(JGY) 240-12 |
92.5 |
21 |
13 |
|
JM(JGY) 240-14 |
92.5 |
21 |
14.7 |
|
JM(JGY) 240-16 |
92.5 |
21 |
17 |
|
JM(JGY) 240-20 |
94.5 |
21 |
21 |
|
JM(JGY) 300-12 |
102 |
24 |
13 |
|
JM(JGY) 300-16 |
102 |
24 |
17 |
|
JM(JGY) 300-20 |
105 |
24 |
21 |
|
JM(JGY) 400-16 |
114 |
27 |
17 |
|
JM(JGY) 400-20 |
116 |
27 |
21 |
|
JM(JGY) 500-16 |
127 |
30 |
17 |
|
JM(JGY) 500-20 |
127 |
30 |
21 |
|
JM(JGY) 630-16 |
140 |
35 |
17 |
|
JM(JGY) 630-20 |
140 |
35 |
21 |
|
JM(JGY) 630-22 |
140 |
35 |
23 |
|
JM(JGY) 800-22 |
170 |
39 |
23 |
|
JM(JGY)1000-22 |
200 |
44 |
23 |

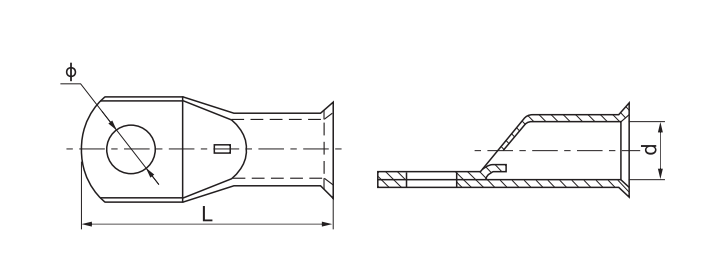

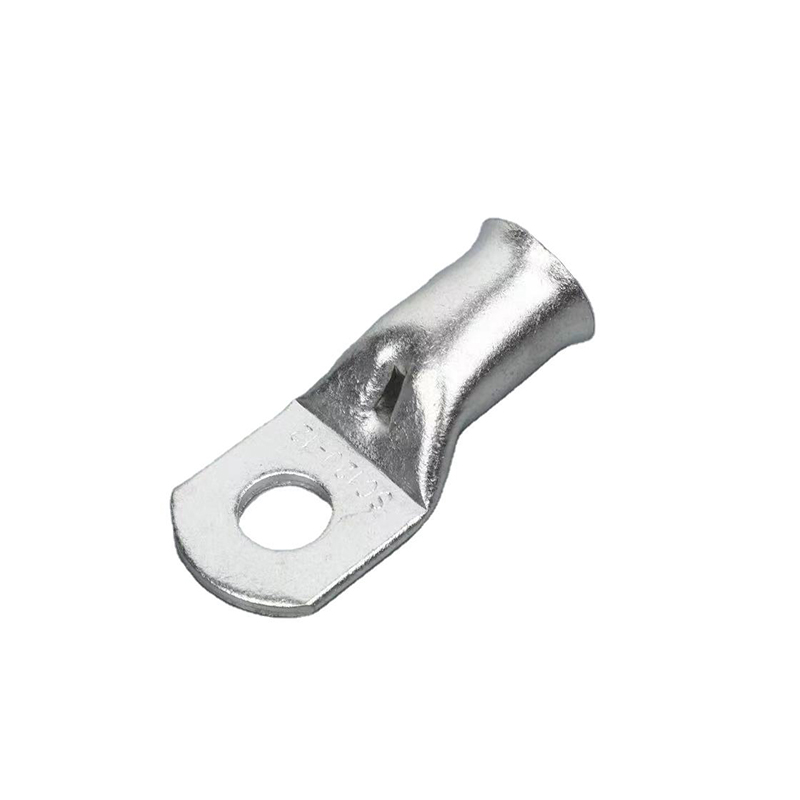

JGB Copper Lugs
Material: E-Cu
Surface treatment: Tin-plated
Product Property: It is used to connect the copper conductor end. It has a viewing window to check the conductor's location. And its bell mouth is specially designed to accommodate fine strand flexible conductors. Because fine stranded cables have a larger diameter than normal cables. And they tend to splay out after stripping. JGB lugs which funnel the strands into the lug and make conductor insert easily.
|
Type |
Dimensions(mm) |
||
|
L |
d |
Φ |
|
|
JM(JGB) 6-5 |
25 |
3.7 |
5.2 |
|
JM(JGB) 6-6 |
25 |
3.7 |
6.5 |
|
JM(JGB) 6-8 |
25 |
3.7 |
8.4 |
|
JM(JGB) 10-6 |
26 |
4.5 |
6.5 |
|
JM(JGB) 10-8 |
26 |
4.5 |
8.4 |
|
JM(JGB) 10-10 |
28 |
4.5 |
10.3 |
|
JM(JGB) 16-6 |
28.5 |
5.7 |
6.5 |
|
JM(JGB) 16-8 |
30.5 |
5.7 |
8.4 |
|
JM(JGB) 16-10 |
31 |
5.7 |
10.5 |
|
JM(JGB) 25-6 |
33.5 |
7.2 |
6.5 |
|
JM(JGB) 25-8 |
35 |
7.2 |
8.4 |
|
JM(JGB) 25-10 |
35 |
7.2 |
10.5 |
|
JM(JGB) 35-6 |
37.5 |
8.5 |
6.5 |
|
JM(JGB) 35-8 |
38 |
8.5 |
8.5 |
|
JM(JGB) 35-10 |
39 |
8.5 |
10.5 |
|
JM(JGB) 35-12 |
39 |
8.5 |
13 |
|
JM(JGB) 50-6 |
43.5 |
9.8 |
6.5 |
|
JM(JGB) 50-8 |
45 |
9.8 |
8.5 |
|
JM(JGB) 50-10 |
45 |
9.8 |
10.5 |
|
JM(JGB) 50-12 |
45 |
9.8 |
13 |
|
JM(JGB) 70-8 |
50 |
11.5 |
8.5 |
|
JM(JGB) 70-10 |
51.5 |
11.5 |
10.5 |
|
JM(JGB) 70-12 |
51.5 |
11.5 |
13 |
|
JM(JGB) 95-10 |
58.5 |
13.7 |
10.5 |
|
JM(JGB) 95-12 |
58.5 |
13.7 |
13 |
|
JM(JGB) 120-12 |
65 |
15 |
13 |
|
JM(JGB) 120-14 |
65 |
15 |
14.7 |
|
JM(JGB) 120-16 |
66.5 |
15 |
17 |
|
JM(JGB) 150-10 |
73 |
16.7 |
10.5 |
|
JM(JGB) 150-12 |
73 |
16.7 |
13 |
|
JM(JGB) 150-14 |
73 |
16.7 |
14.7 |
|
JM(JGB) 150-16 |
73 |
16.7 |
17 |
|
JM(JGB) 185-12 |
80 |
19.2 |
13 |
|
JM(JGB) 185-14 |
80 |
19.2 |
14.7 |
|
JM(JGB) 185-16 |
80 |
19.2 |
17 |
|
JM(JGB) 240-16 |
92.5 |
21 |
17 |
|
JM(JGB) 240-20 |
92.5 |
21 |
21 |
|
JM(JGB) 300-16 |
_ |
24 |
- |
|
JM(JGB) 300-20 |
- |
24 |
- |
|
JM(JGB) 400-16 |
- |
27 |
- |
|
JM(JGB) 400-20 |
- |
27 |
- |
|
JM(JGB) 500-16 |
- |
30 |
- |
|
JM(JGB) 500-20 |
- |
30 |
- |
|
JM(JGB) 630-20 |
- |
35 |
- |
|
JM(JGB) 630-22 |
- |
35 |
- |
|
JM(JGB) 800-22 |
- |
39 |
- |
|
JM(JGB) 1000-22 |
- |
44 |
- |
