LZZBW-35 CT
LZZBW-35 CT

LZZBW-35A (B) 35kV Outdoor Single Phase Current Transformer

Overview:
LZZBW-35 series current transformer is an outdoor epoxy resin casting type, outdoor type, fully enclosed, and pillar-type voltage transformer. It is suitable for power systems with AC 50Hz, rated voltage 35KV and below, for current supply, power measurement and relay protection.
if need any qualification or test report,please email to info@changangroup.com.cn
Inquire Now

LZZBW-35A (B) 35kV Outdoor Single Phase Current Transformer

Inquire Now
Description

Overview

LZZBW-35 series current transformer is an outdoor epoxy resin casting type, outdoor type, fully enclosed, and pillar-type voltage transformer. It is suitable for power systems with AC 50Hz, rated voltage 35KV and below, for current supply, power measurement and relay protection.

Parameter

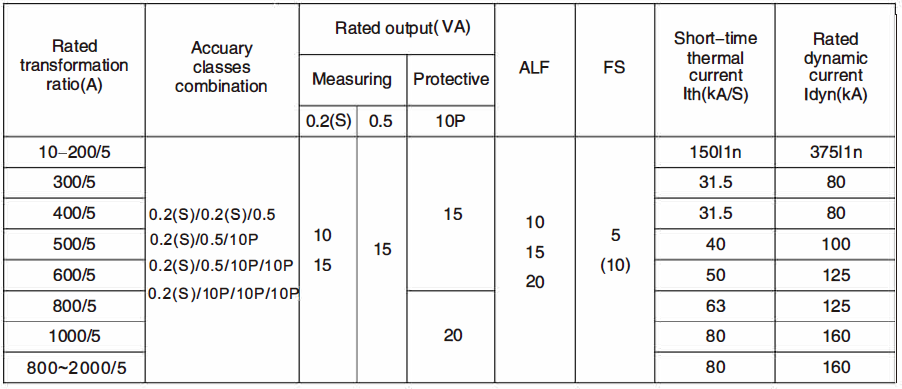

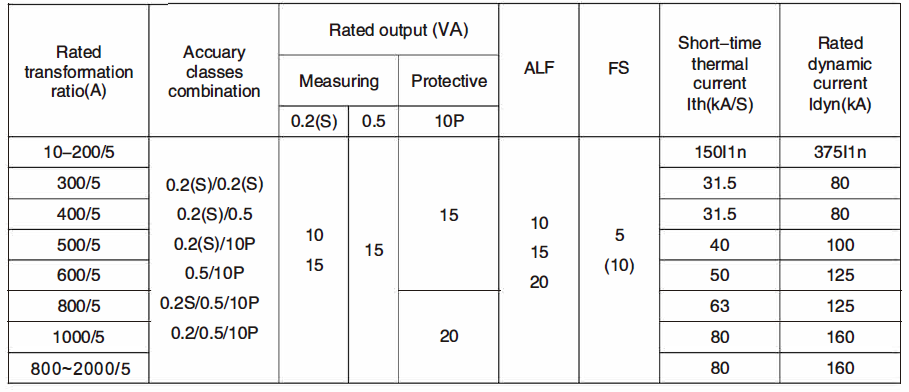

Technical Data

LZZBW-35A

LZZBW-35B

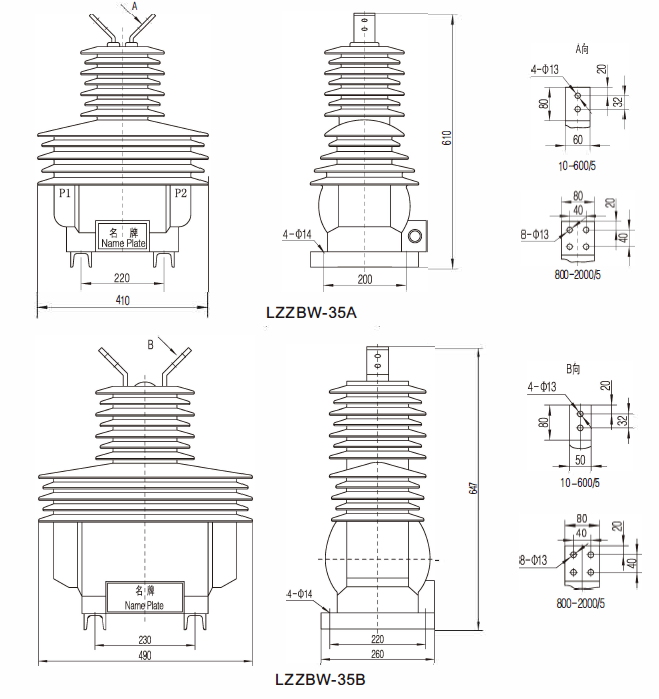

Outline Dimension
