Overview:

CC1 AC contactor is a remote-control device suitable for protecting circuits from overloads and can be used with thermal overload relays. It is primarily used for frequent starting and control of AC circuits, suitable for AC-3 and AC-4 categories, with an operating voltage up to 690V and a current up to 95A. The product complies with IEC/EN 60947-4-1 and IEC/EN 60947-5-1 standards and is suitable for altitudes below 2000 meters and ambient temperatures of -5°C to +40°C.

if need any qualification or test report,please email to info@changangroup.com.cn

Inquire Now →

Description

CC1 Series AC Contactors are designed for robust and efficient circuit control in industrial applications. Ranging from 9A to 95A, these contactors are ideal for remote circuit making and breaking, providing reliable protection against overloads when used with thermal overload relays. Compliant with IEC/EN 60947 standards, they support frequent start-ups and are suitable for various industrial environments, ensuring optimal performance and safety.

Parameter

Model Explanation

Company code

Contactor

Design sequence NO.

Basic specification, expressed with the rated operational current (380V/400V, AC3)

Number of contacts

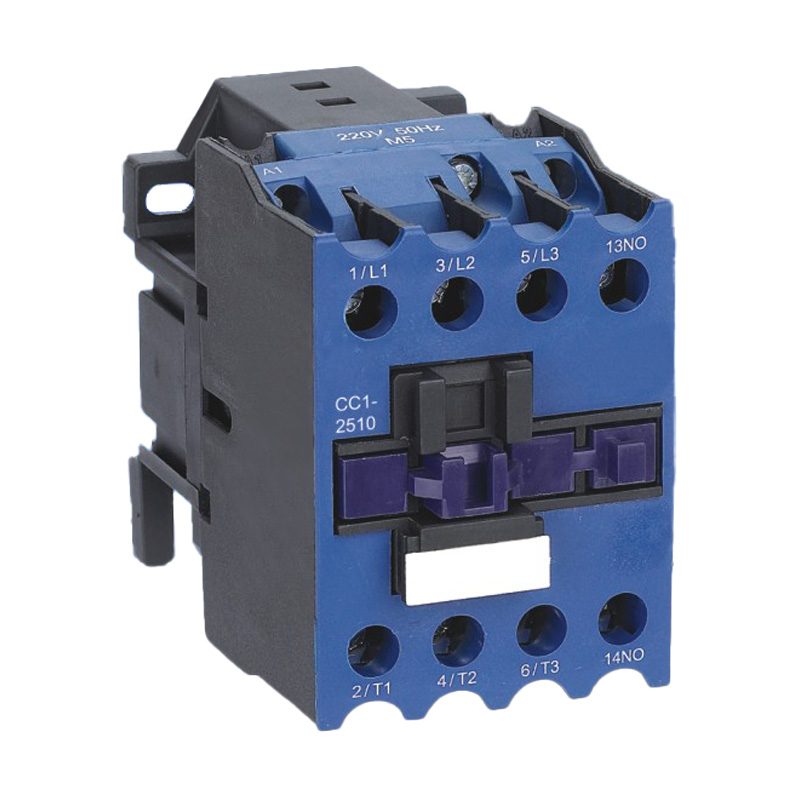

10: 3N/O main contacts+1N/O auxiliary contact (9A,12A,18A,25A,32A)

01: 3N/O main contacts+1N/C auxiliary contact (9A,12A,18A,25A,32A)

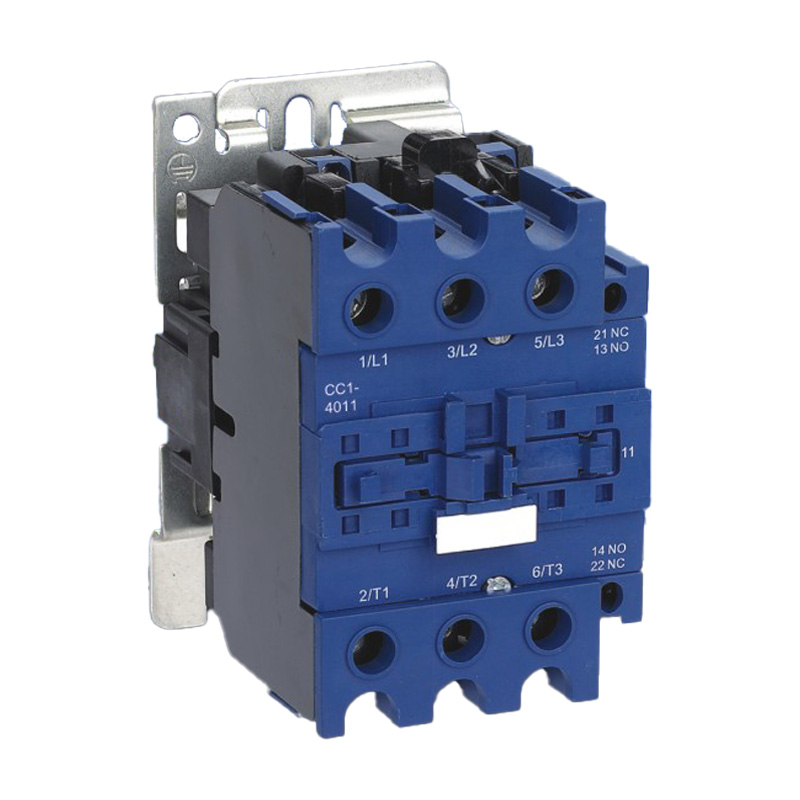

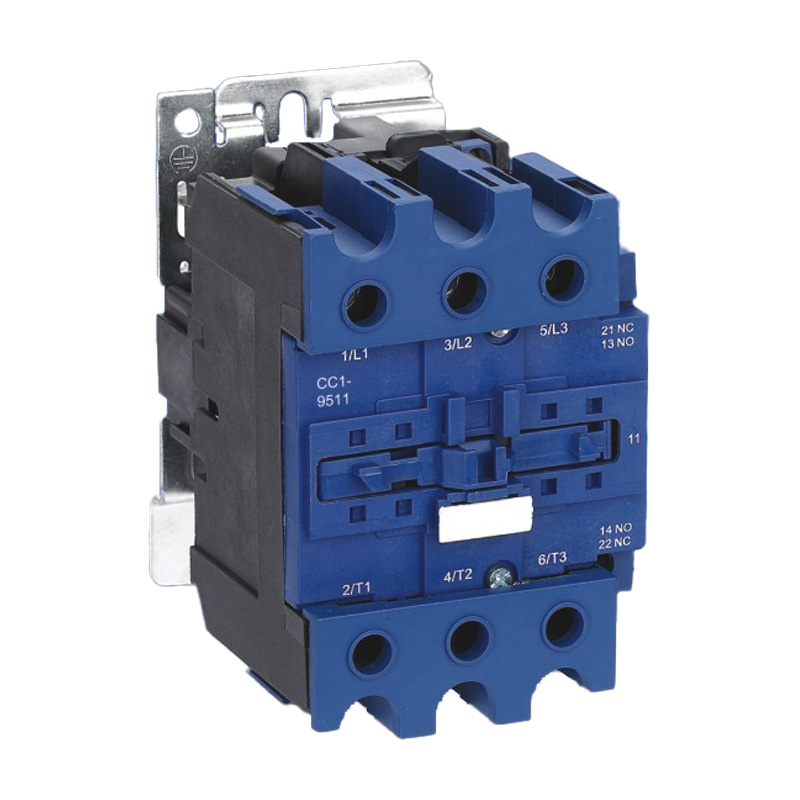

11: 3N/O main contacts+1N/O and 1N/C auxiliary contact (9A,12A,18A,25A,32A,40A,50A,65A,80A,95A)

04: 4N/O main contacts (9A,12A,25A,40A,50A,65A,80A,95A)

08: 2N/O and 2N/C main contacts (9A,12A,25A,40A,50A,65A,80A,95A)

Z: DC operation Blank: AC operation

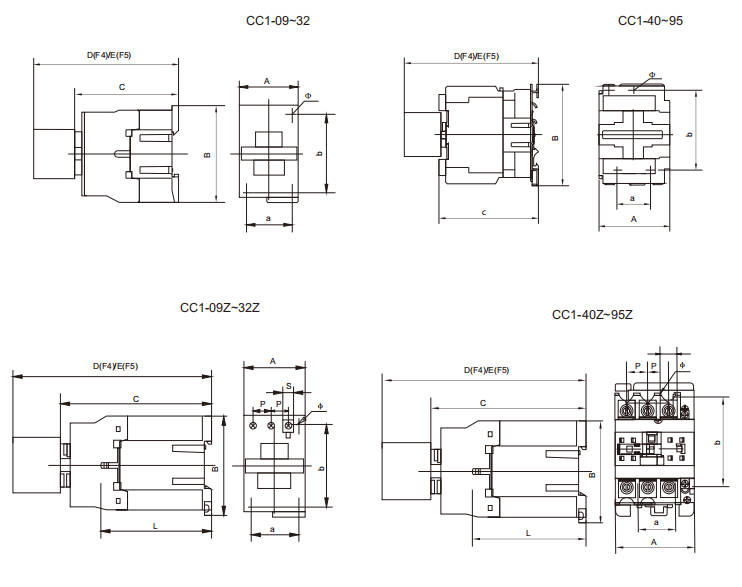

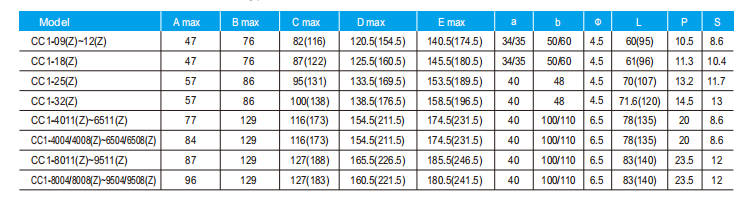

Technical Data

Standard	IEC/EN60947-4-1 IEC/EN60947-5-1
Model No.		CC1-09	CC1-12	CC1-18	CC1-25	CC1-32	CC1-40	CC1-50	CC1-65	CC1-80	CC1-95
Rated Conventional Heating Current	Ith(A)	20	20	32	40	50	60	80	80	100	125
Rated Voltage Ui(V)	Ui(V)	690
Rated Operation Current Ue=380/415V	AC-3 Ie(A)	9	12	18	25	32	40	50	65	80	95
Rated Operation Current Ue=380/415V	AC-4 Ie(A)	3.5	5	7.7	8.5	12	18.5	24	28	37	44
Power Controlled 3ph cage Motor AC-3	220/240V KW	2.2	3	4	5.5	7.5	11	15	18.5	22	25
	380/415V KW	4	5.5	7.5	11	15	18.5	22	30	37	45
	660/690V KW	5.5	7.5	10	15	18.5	30	33	37	45	45
	AC-3	1000	1000	1000	1000	800	800	600	600	600	600
Electrical life (x10³ operations)	AC-4	200	200	200	200	200	150	150	150	100	100
Mechanical life (x10⁶ operations)		10	10	10	10	8	8	8	8	6	6
Matched Fuse	Size	RT16-00
Matched Fuse	A	20	20	32	40	50	63	80	80	100	125
Main circuit	3P or 4P
Auxiliary circuit Cat.:AC-15, Ue=415V Ie=0.95A Ith=10A	1NO / 1NC / 1NO + 1NC
