BH-0.66 I Low voltage current transformer

Overview:

BH-0.66 Type I current transformer is suitable for indoor use, and is used for measuring or metering current and electric energy in AC circuits with a rated voltage of 0.66kV and below and a rated frequency of 50Hz. It is installed by busbar fixing or bottom plate fixing, and there is a window in the middle of the transformer for single busbar or cable to pass through.

if need any qualification or test report,please email to info@changangroup.com.cn

Inquire Now →

BH-0.66 I Low voltage current transformer

Inquire Now →

Description

Parameter

Other Similar Products

Description

1. Application

BH-0.66 I Current Transformer is used in combination with measurement instruments: ammeters, watt-hour meters, measurement units, control relays, etc.

2.Features

2.1 Secondary current Isn: 5A

2.2 Rated voltage Ue:660 V

2.3 Frequency: 50/60 Hz

2.4 Instrument security factor (FS): 10

2.5 Operating temperature: -5°C to +40°C, humidity <80%

2.6 Standards: IEC 60044-1

2.7 Installation type: busbar or plate fixing

Parameter

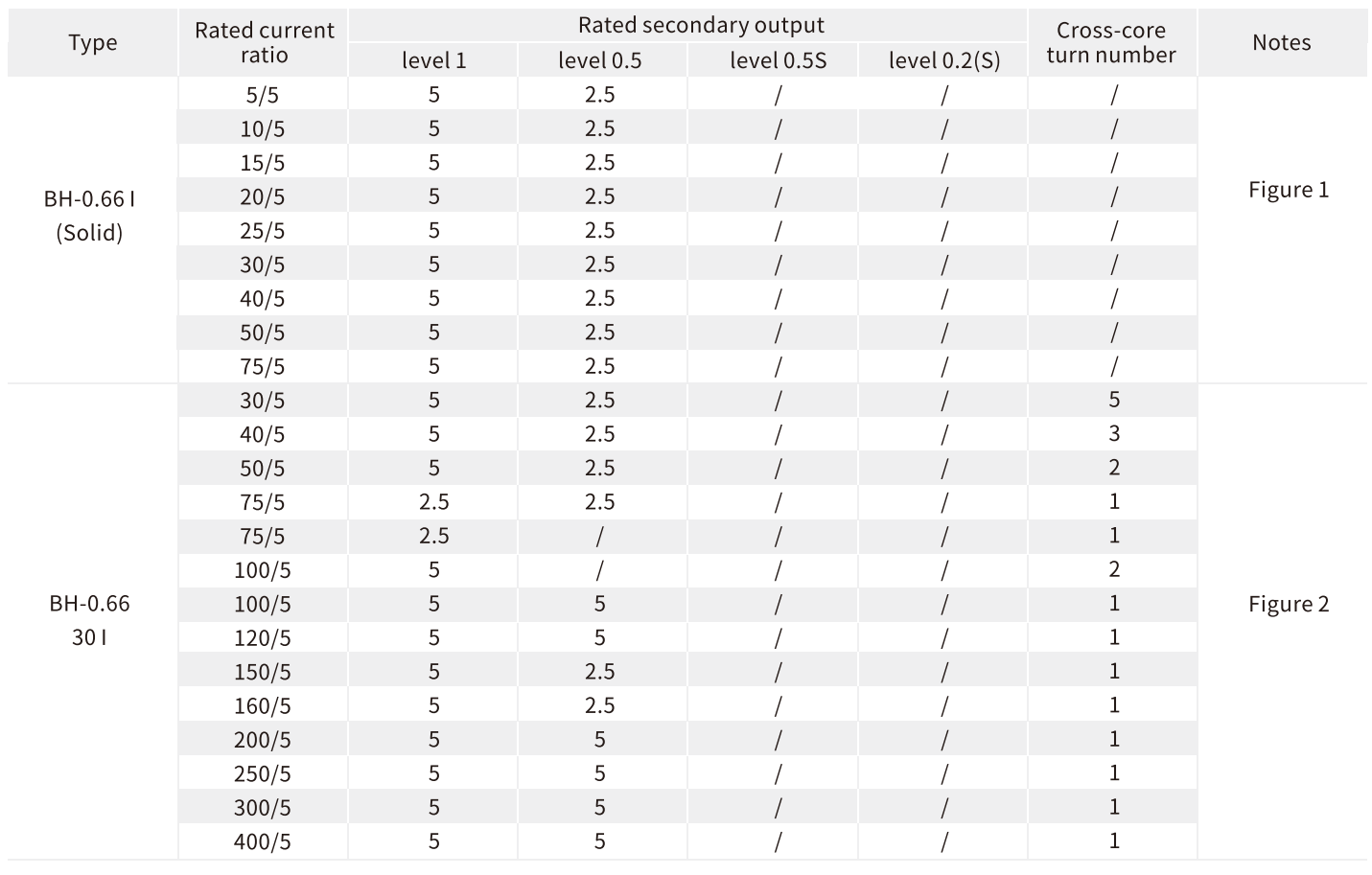

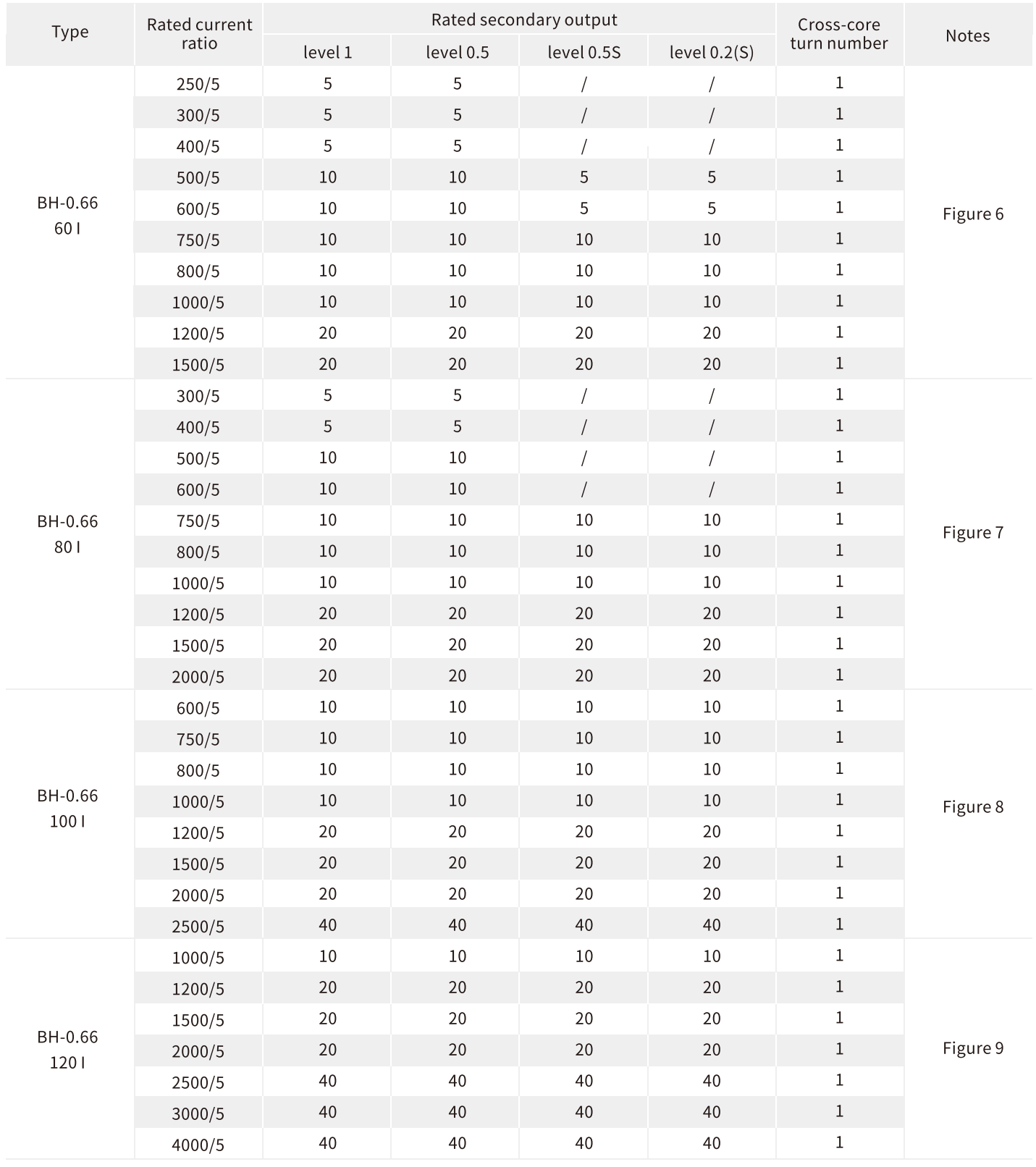

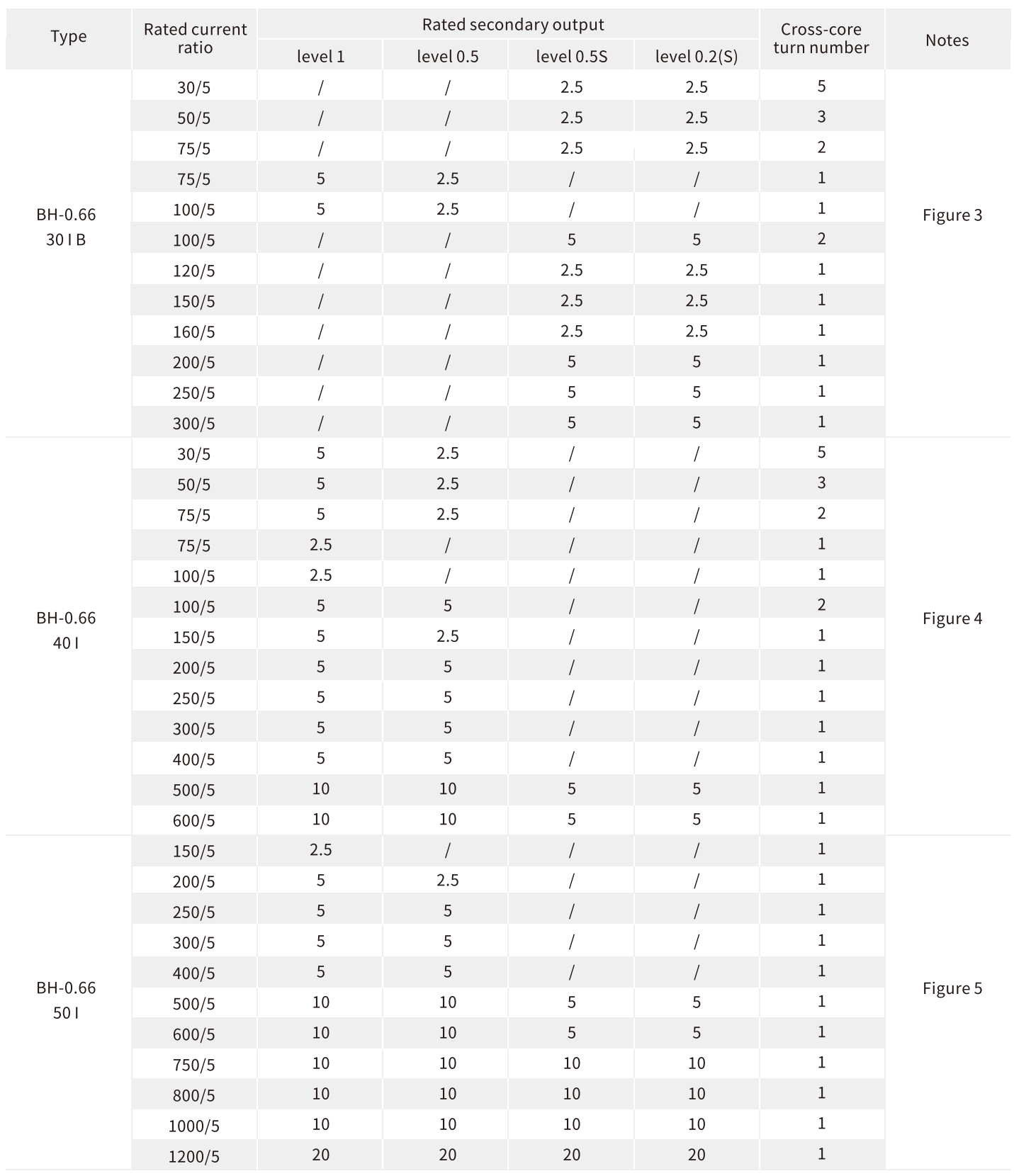

Technical Data

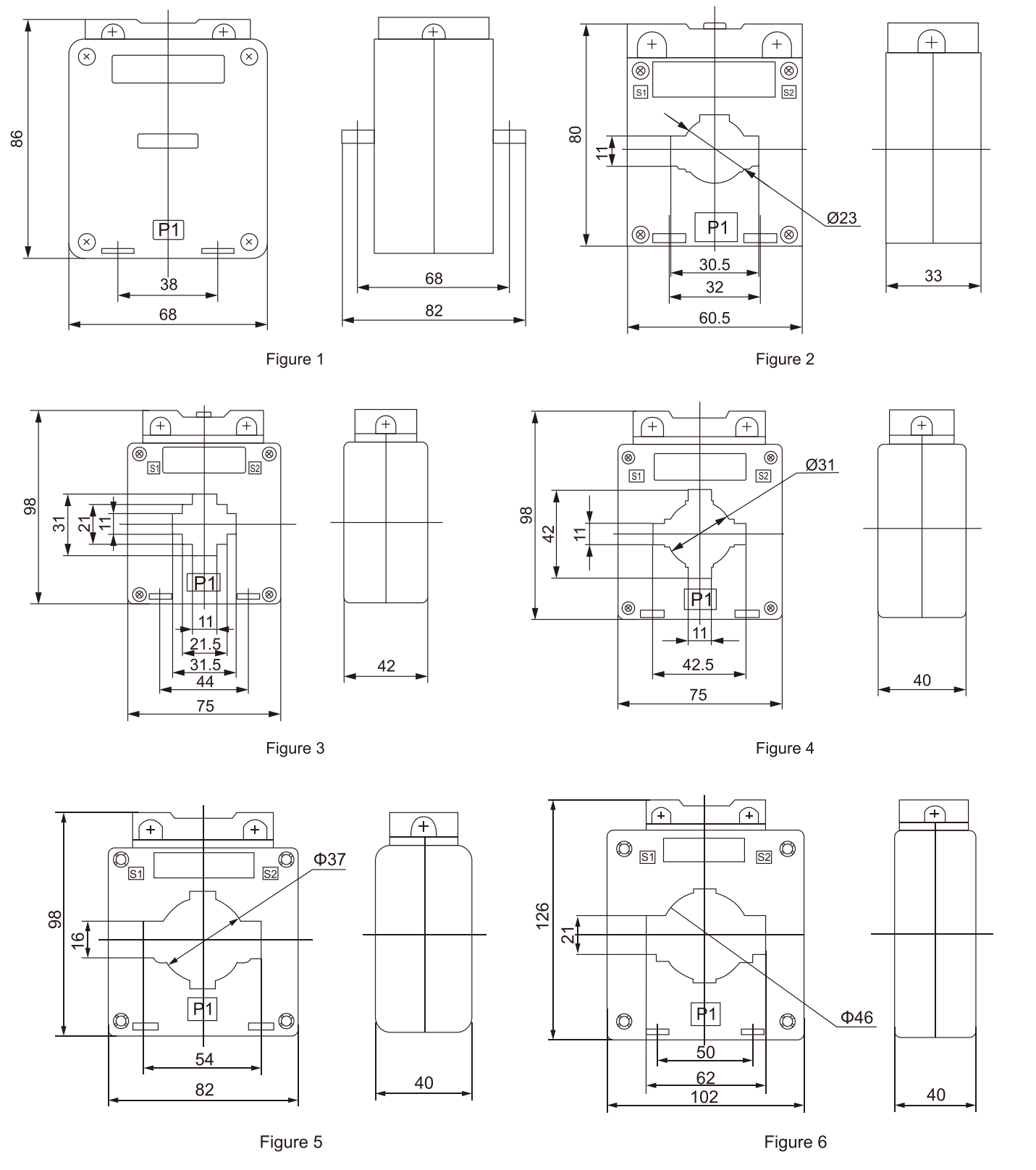

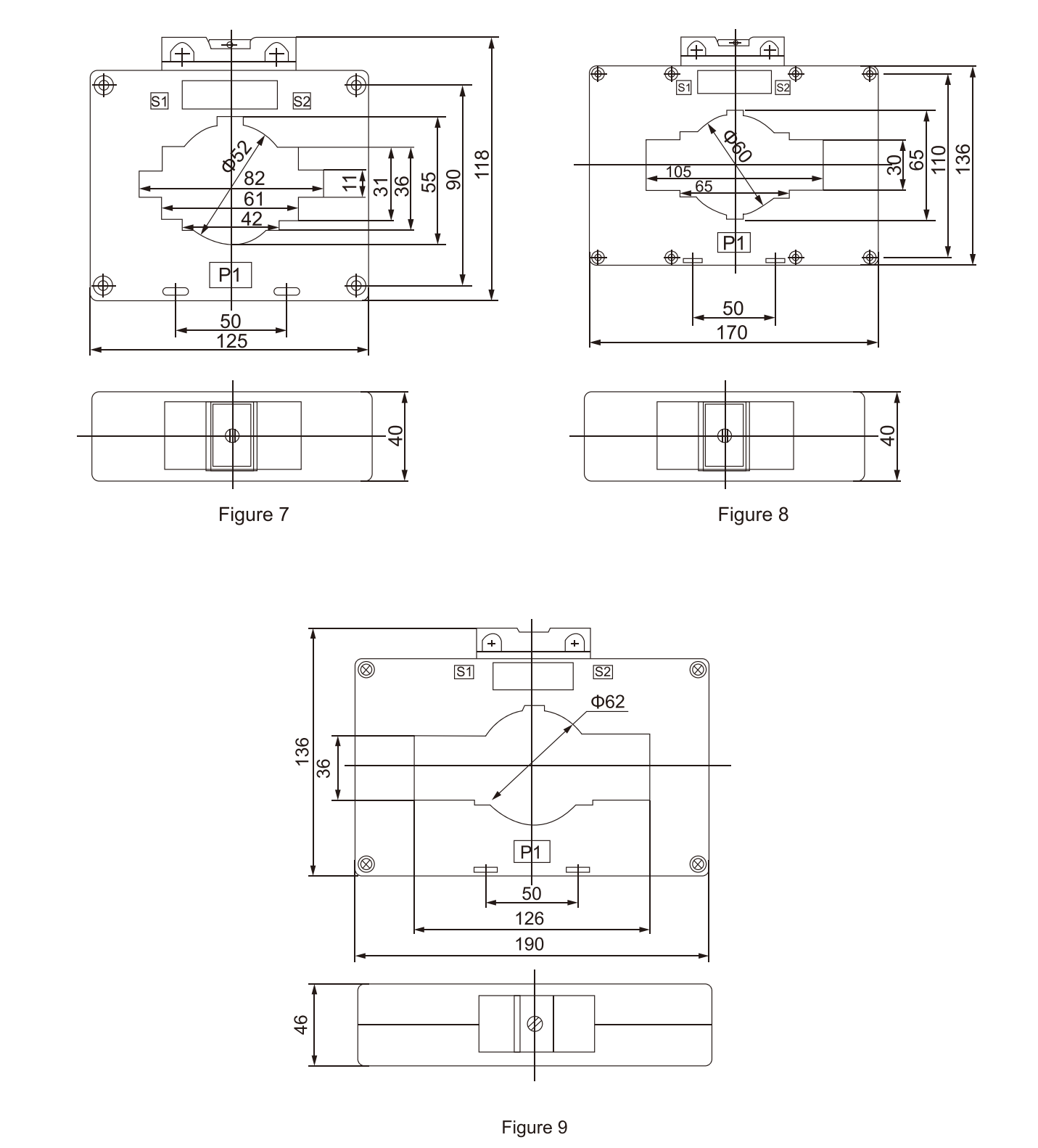

Outline and Dimensions of Installation
