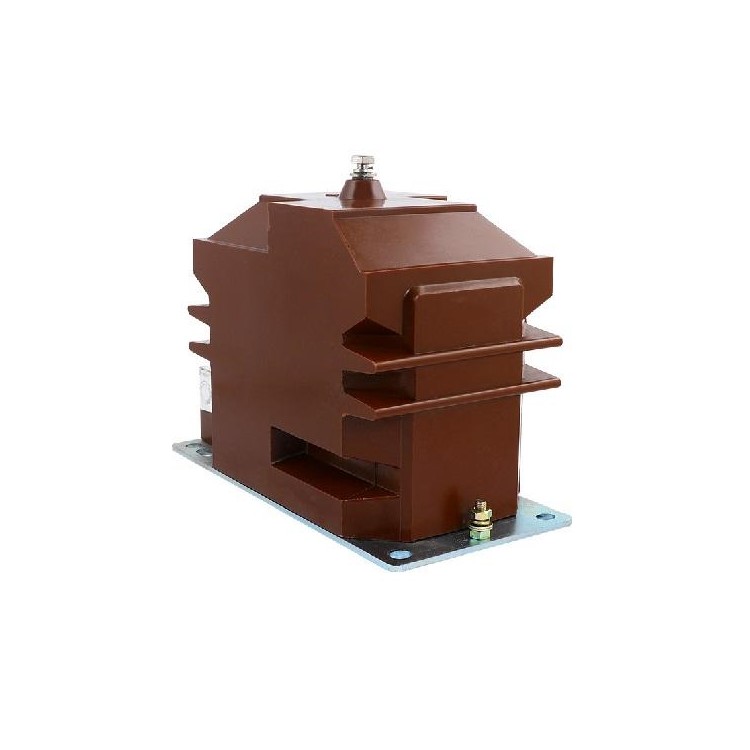

JDZ(X)10 Indoor single phase voltage transformer (VT)

Overview

JDZ10-10 voltage transformer is equivalent to RZL-10 voltage transformer. It is a single-phase, indoor, dry-type fully enclosed product. When used alone or in groups of two, V/V connection is used in groups of two. Three For a group of units, it is V/V/V connection (please refer to the sixth point of this article for the specific connection method). It is respectively suitable for rated frequency 50HZ or 60HZ, and rated voltage is 3kV, 6kV, 10kV for power metering, voltage monitoring and relaying in power systems. For electrical protection.

Environmental conditions

1. The altitude does not exceed 3000 meters.

2. The ambient temperature is not higher than +40'C and not lower than -5°C.

3. The relative humidity of the surrounding air is not more than 65% (-5°C).

4. Satisfy the level II pollution level.

5. There is no corrosive gas in the installation place.

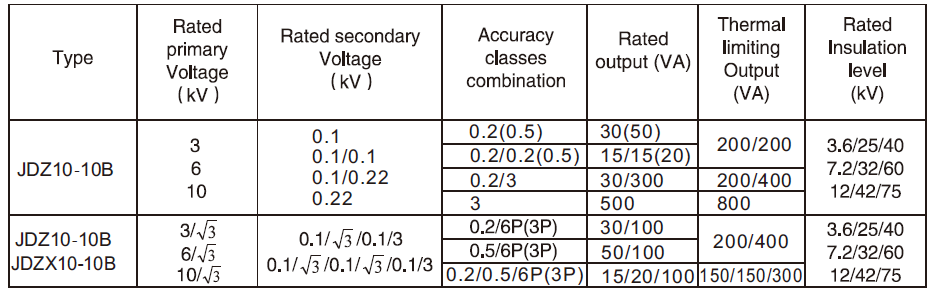

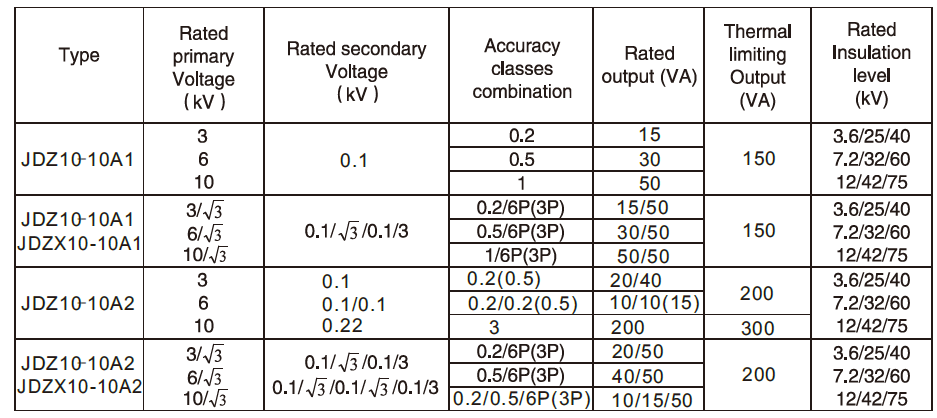

Technical Data

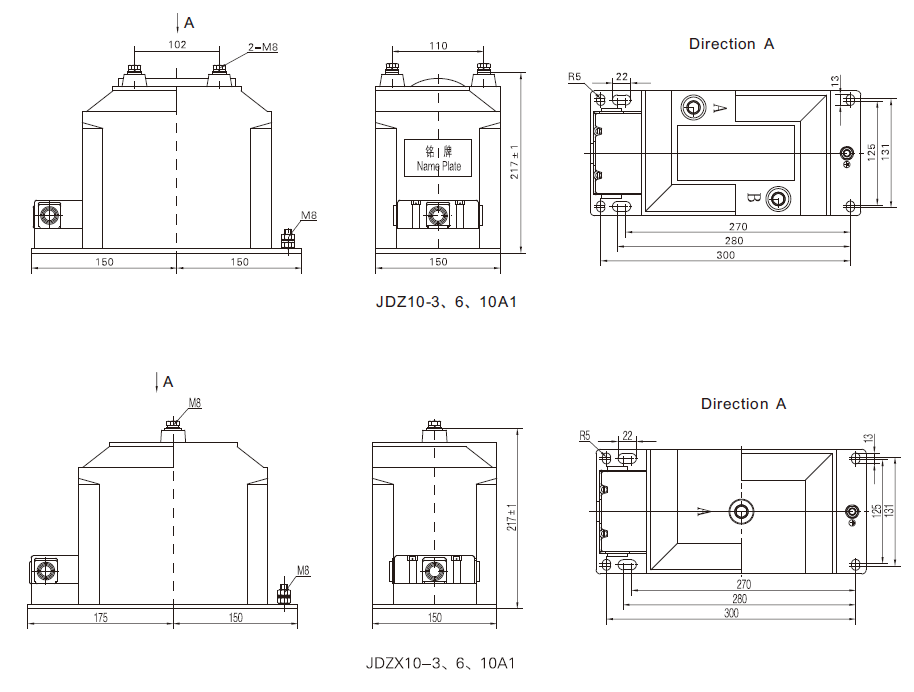

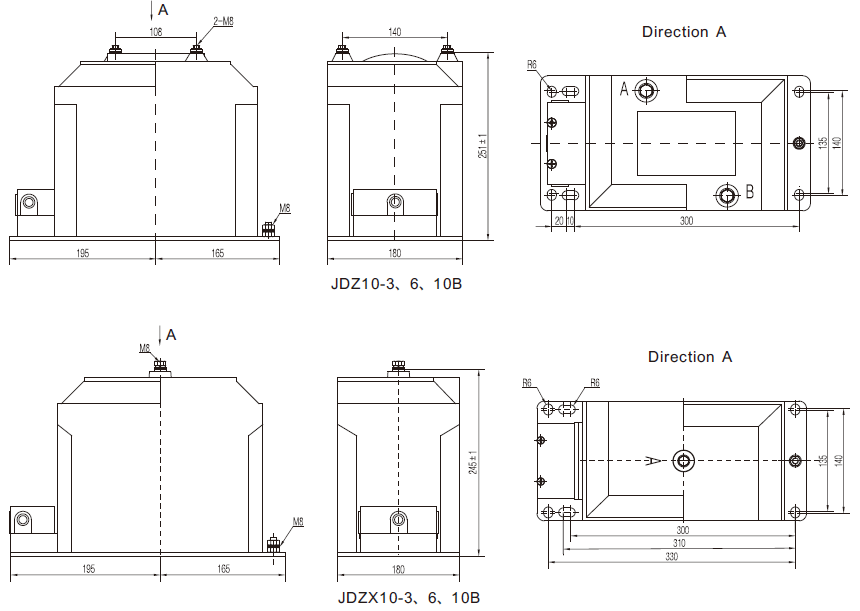

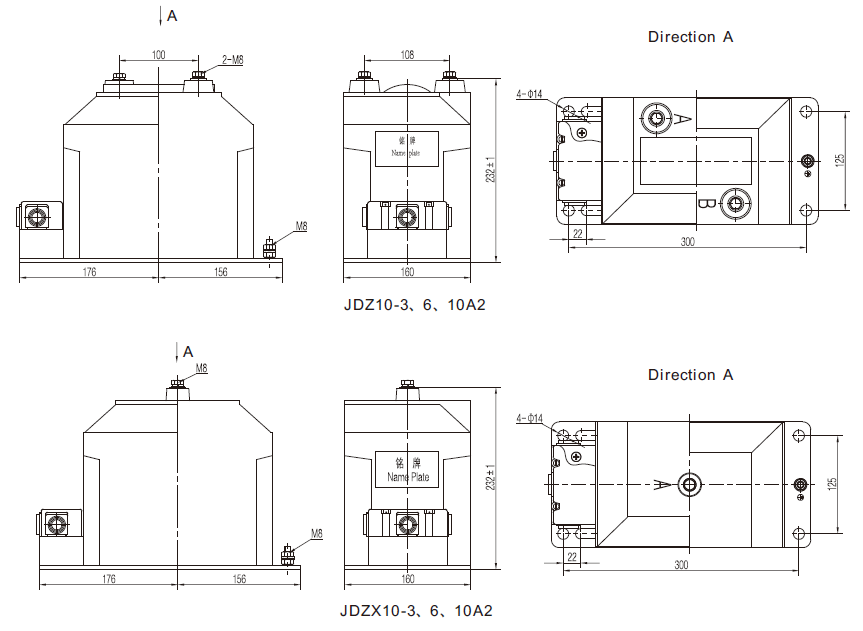

Outline Dimension

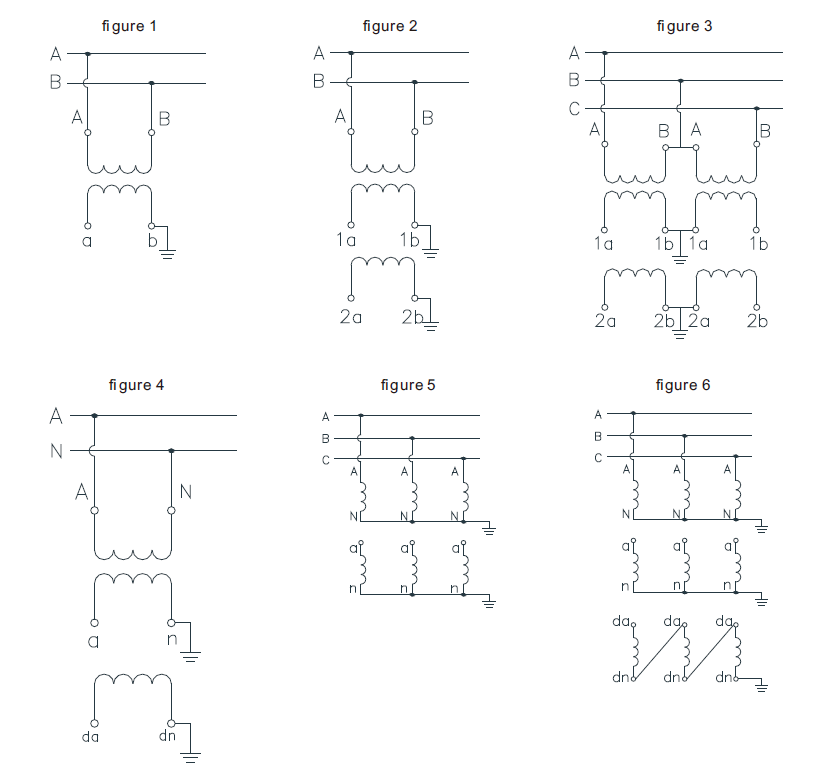

Wiring drawing
