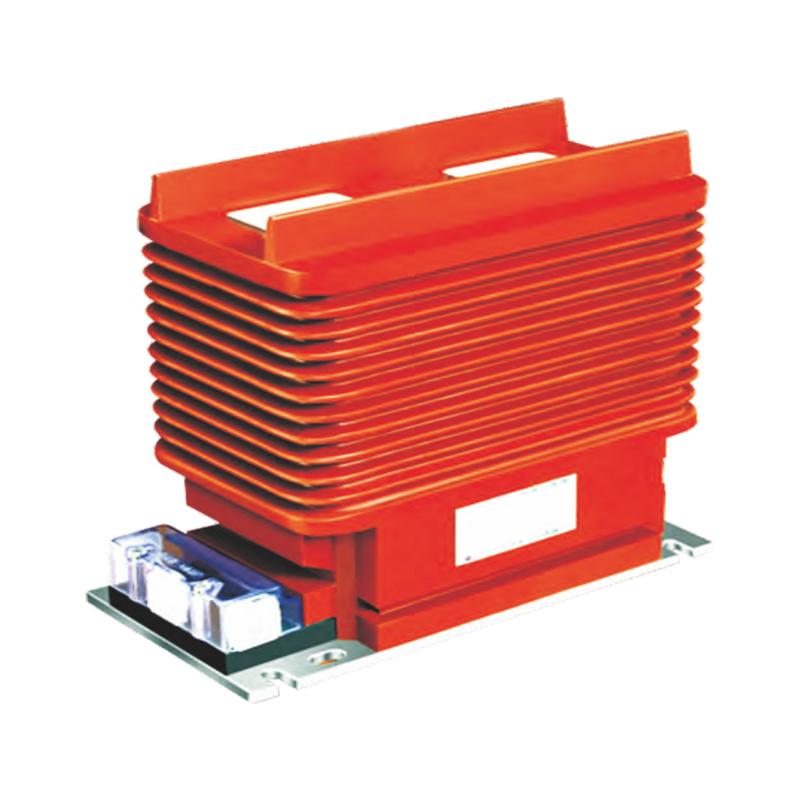

The current transformer for epoxy resin casting the pillar structure of the fully closed. Th use of advanced materials and processes, suitable for indoor AC 50-60Hz. Rated voltage of 24kV and below the power system for the current use of energy measurement and relay protection. The product complies with IEC60044-1:2003 standard.
Resistant to pollution and humidity, but also suitable for tropical regions.
The transformer does not require special maintenance, just on a regular basis to remove surface dirt.
Completely closed due to current transformer with epoxy resin casting.
Small size, Suitable for any location, and installed in any direction.

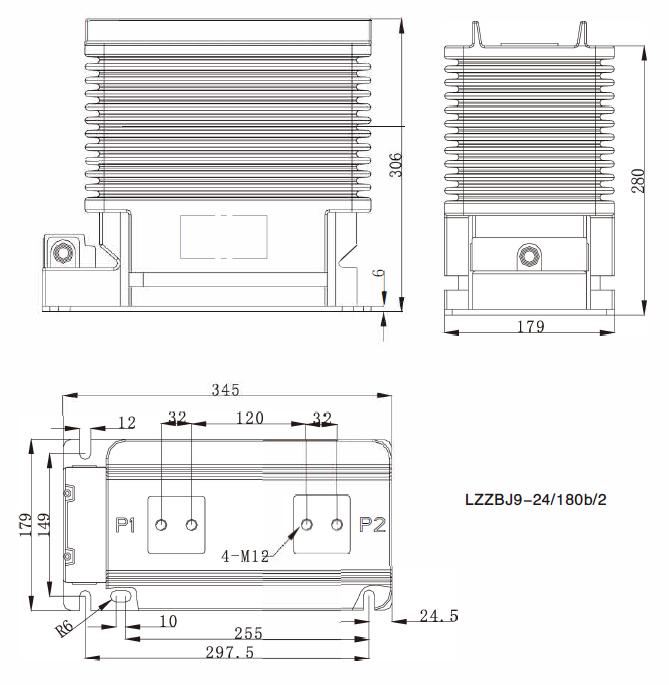

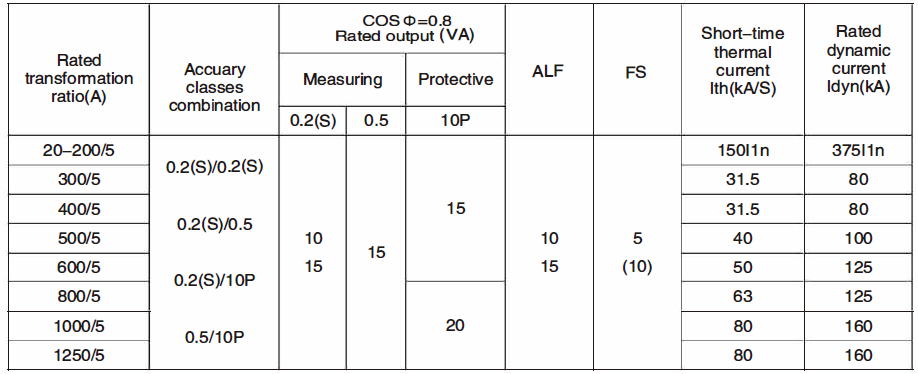

LZZBJ9-24-180b-2

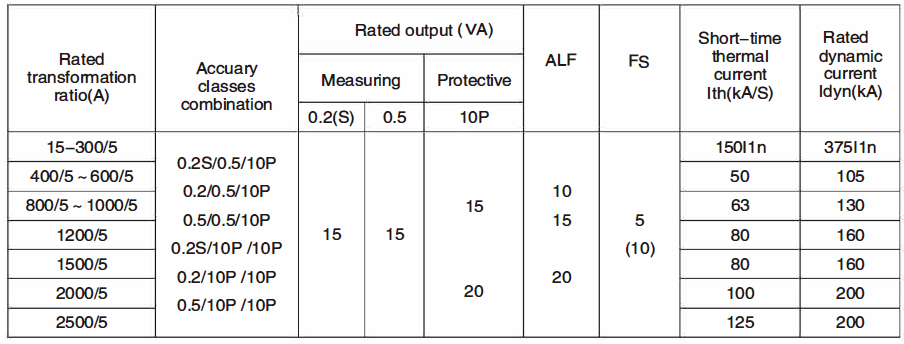

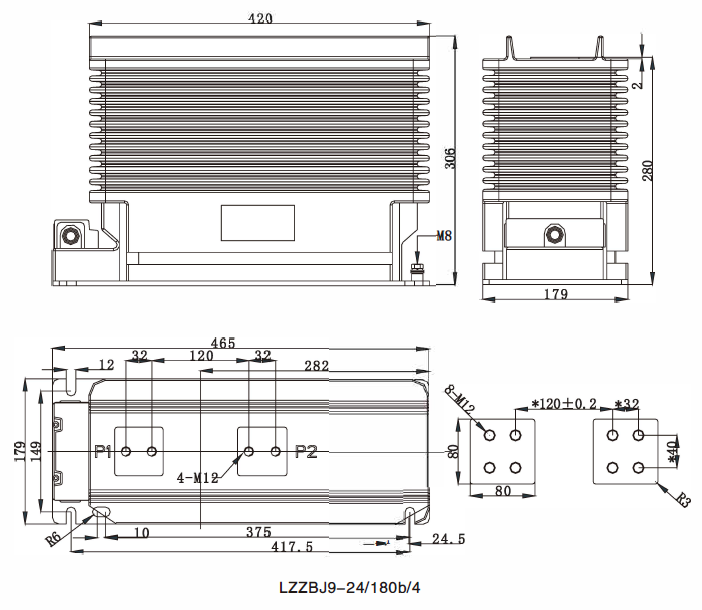

LZZBJ9-24-180b-4 Three secondary single ratio

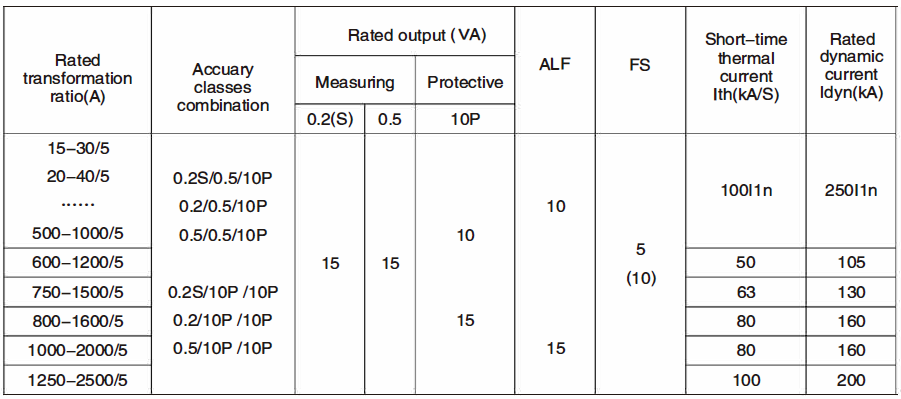

LZZBJ9-24-180b-4 Three secondary double ratio
