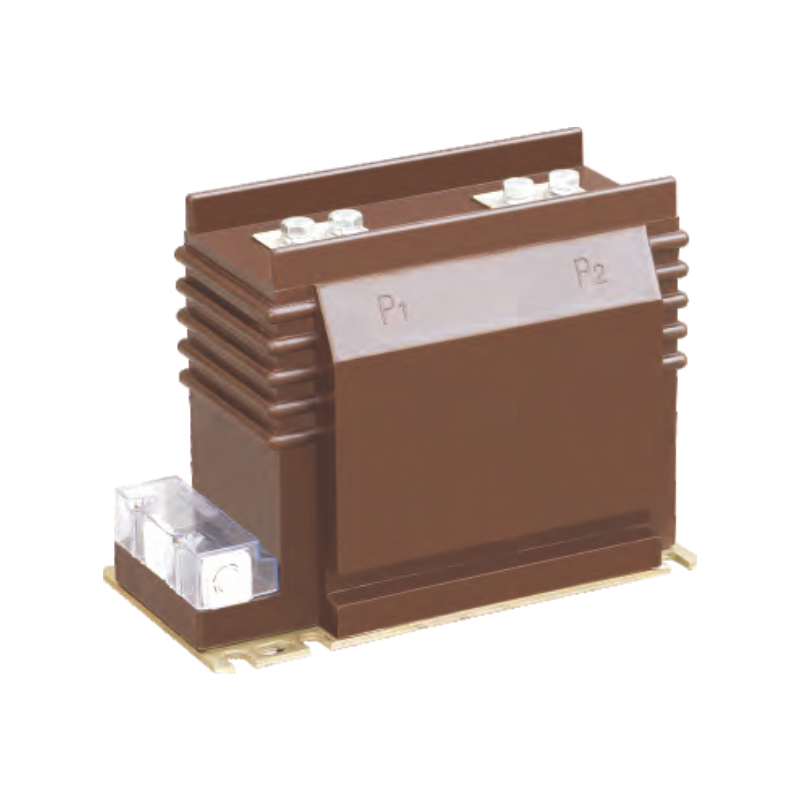

The current transformer for epoxy resin casting the pillar structure of the fully closed. Th use of advanced materials and processes, suitable for indoor AC 50-60Hz. Rated voltage of 12.5kV and below the power system for the current use of energy measurement and relay protection.
This product is the latest generation of high precision and high dynamic thermal stability, high-capacity product. Secondary winding of the number of 2-3, according to the different needs of any combination, applies KYN28A-12(GZS1)-type high-voltage withdrawable switchgear cabinet and other mid-cabinet.
Resistant to pollution and humidity, but also suitable for tropical regions.
The transformer does not require special maintenance, just on a regular basis to remove surface dirt.
Completely closed due to current transformer with epoxy resin casting.
Small size, Suitable for any location, and installed in any direction.

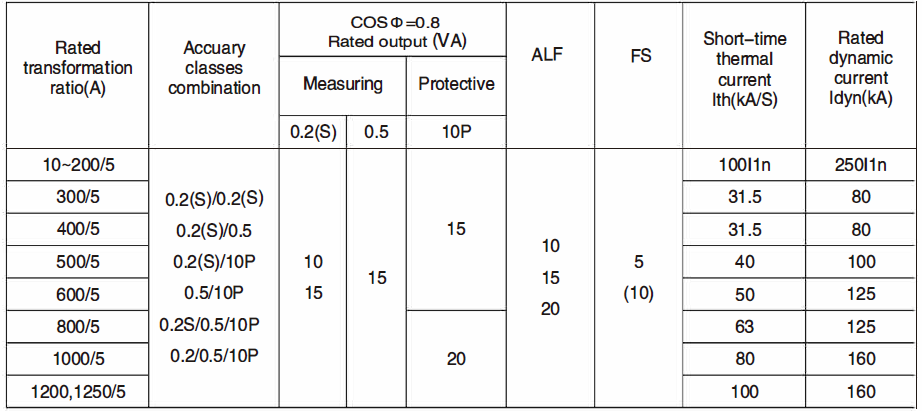

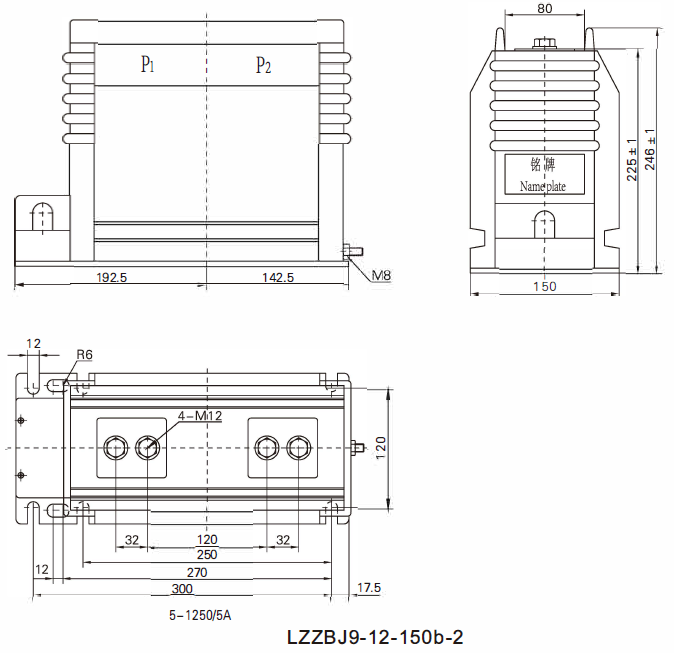

LZZBJ9-12-150b-2 Single Ratio

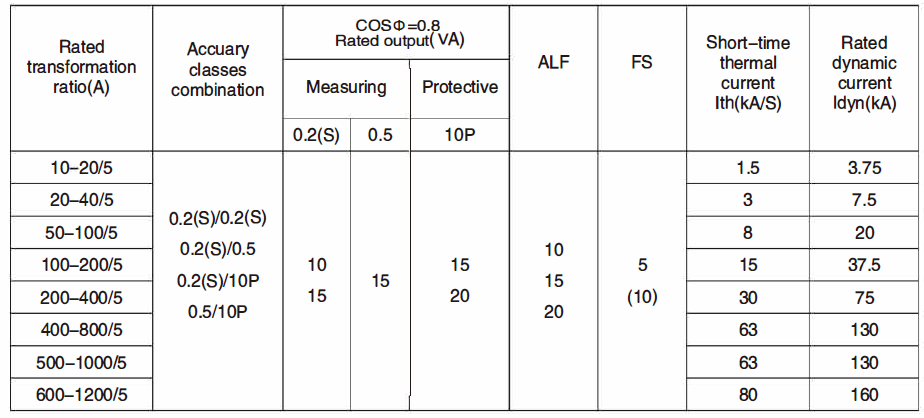

LZZBJ9-12-150b-2 Double Ratio

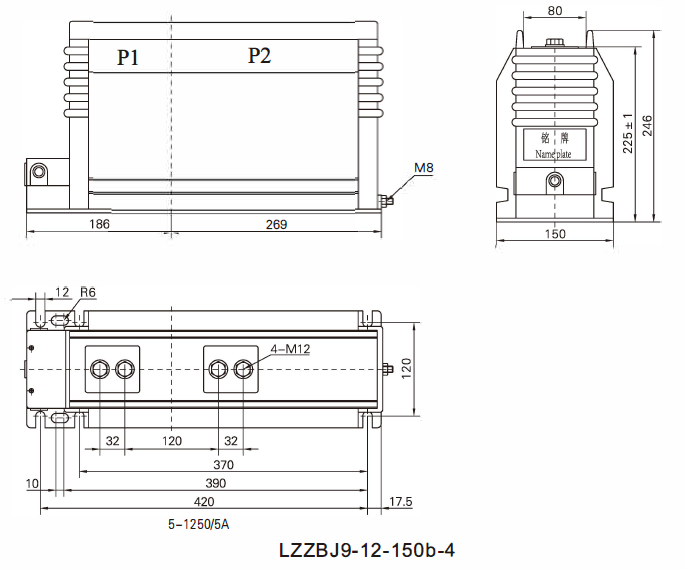

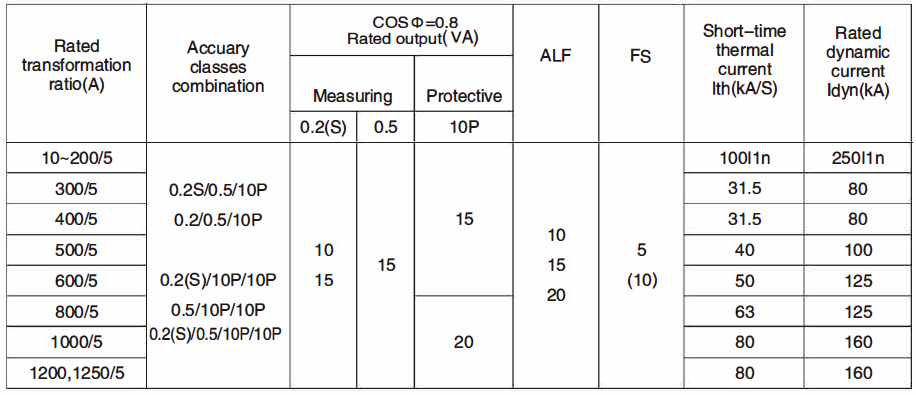

LZZBJ9-12-150b-4 Single Ratio

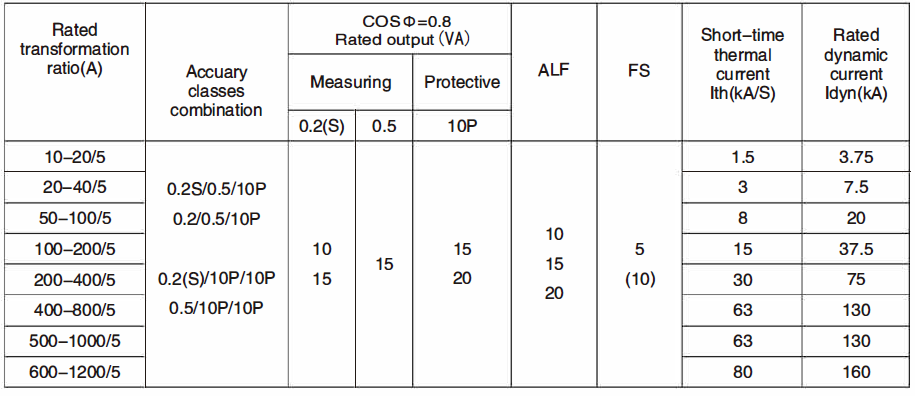

LZZBJ9-12-150b-4 Double Ratio
