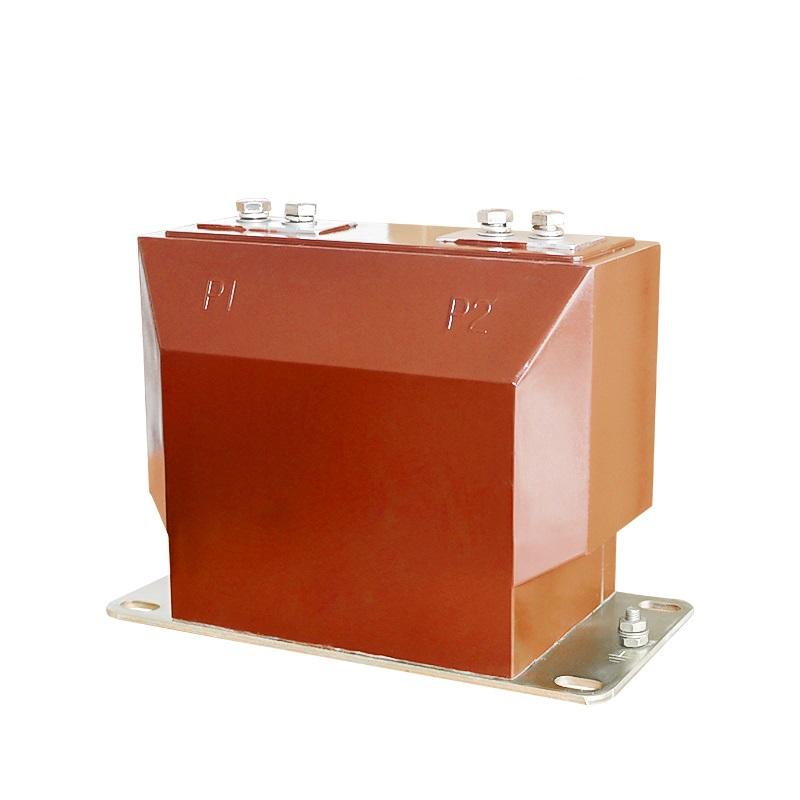

LZZBJ9-10C type current transformer is epoxy resin cast indoor total working conditions of the strut. Protection or energy measurement with the power system with rated frequency 50Hz rated voltage of 10kV and below. Which is usually installed in switchgear or other types of switchgear.
The current transformer is the pillar structure. Closed casting with epoxy resin, resistant to pollution and humidity. Also suitable for the tropics.
The transformer does not require special maintenance, just on a regular basis to remove surface dirt.
Current transformer with epoxy pouring full-closed, small size, quality, suitable for any location, installed in any direction.

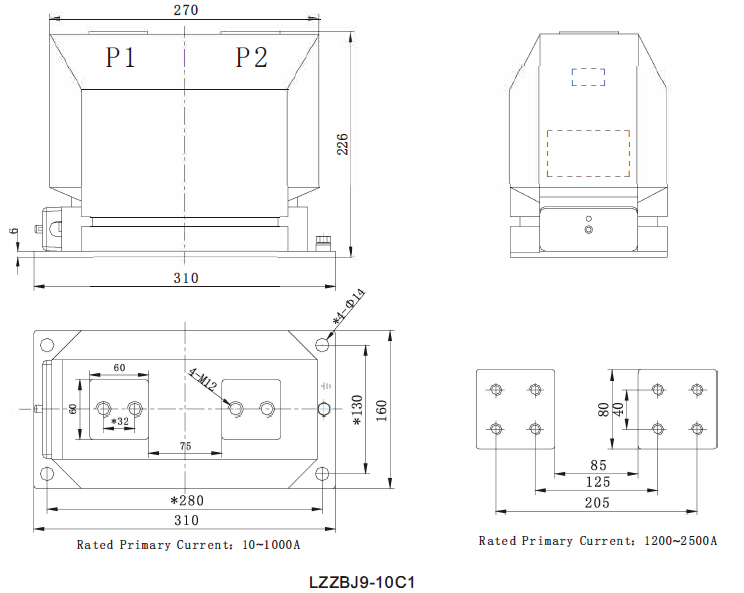

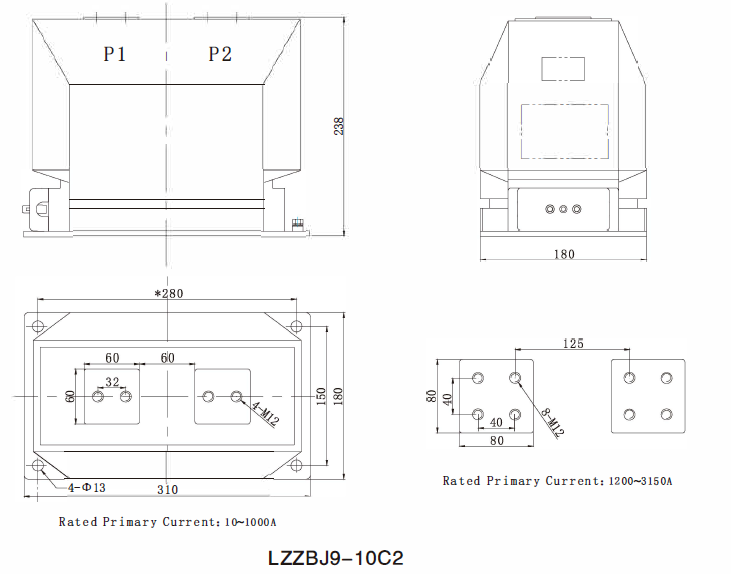

C size parameters of the transformer. Only the product of the length, width change. Height, one outlet terminals size remains unchanged.C1, C2 primary current are 5~3150A.

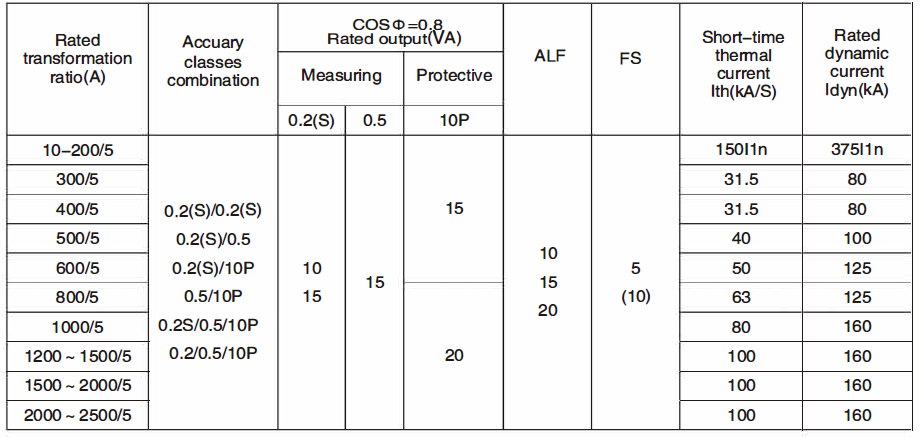

LZZBJ9-10C1Single Ratio

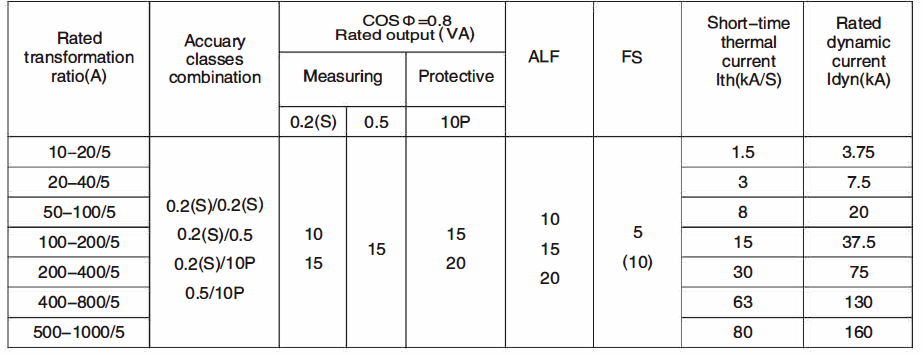

LZZBJ9-10C1 Double Ratio

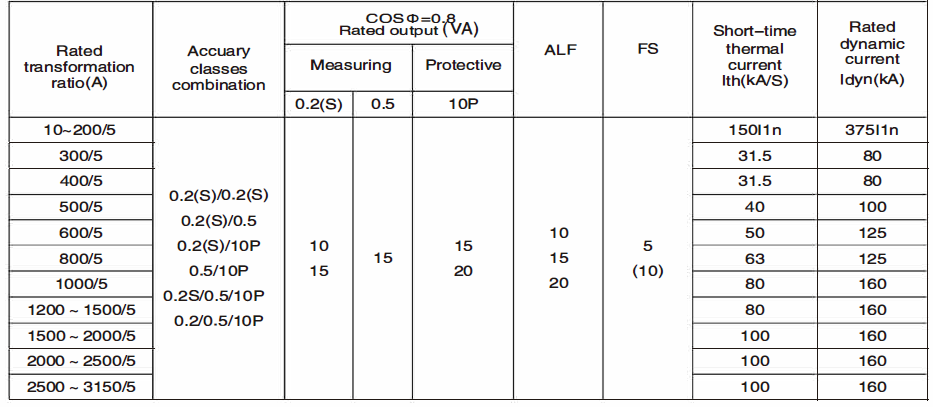

LZZBJ9-10C2
