Description

Overview

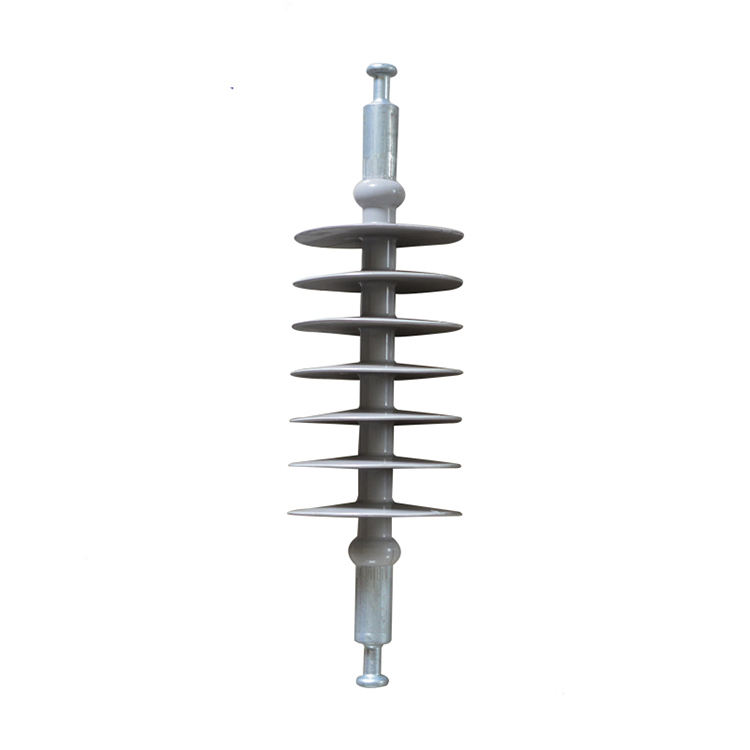

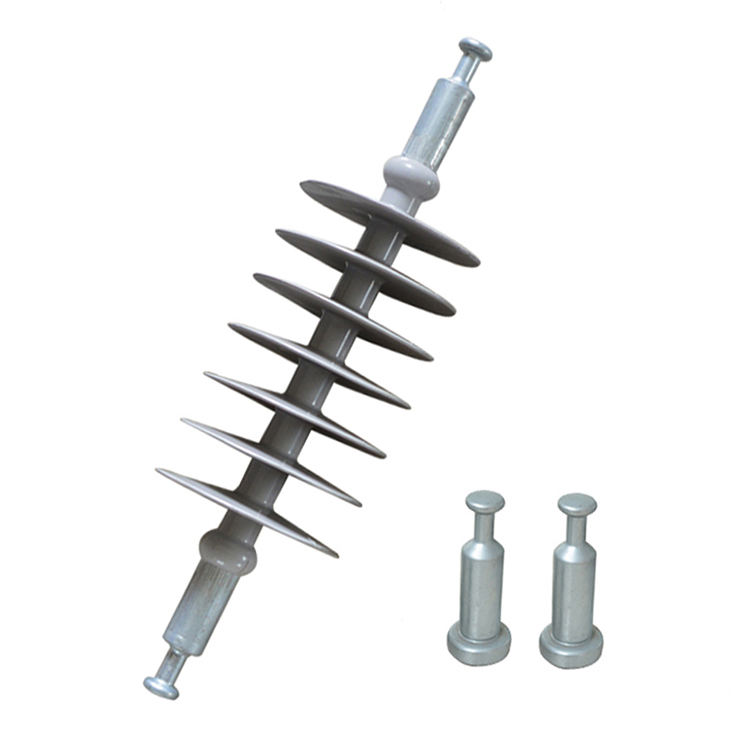

Long rod insulators support transmission lines on steel towers, isolating the lines from the tower. They play a key role in the safe supply of electricity. Depending on the transmission voltage and usage environment, long rod insulators are typically deployed as configurations of multiple insulators.

Composite long rod insulators are primarily used in suspension strings in straight-line supports and as tension strings in anchor towers and dead-end towers. They are also used in jumpers or portals of outdoor substations. In some cases, composite long rods are used in the guise of wooden poles, and more rarely in the guise of steel towers.

General

1. Ratings:12~500kV.
2. Application: for lines supporting and insulation of power transmission & distribution system.

Working Condition

1. Ambient air temperature: -50℃~+50℃
2. Altitude:<=3000m
3. Frequency:<=100Hz

Parameter

Technical Data

Model	Specified Mechanical Load (KN)	Spacing H (mm)	Arcing distance (＞mm)	Min. Creepage distance (mm)	Lightning impulse Withstand voltage (≥kVp)	Wet power frequency withstands voltage (≥kVrms)	Factory model
CS70XZ-100/465	70	360	215	480	100	50	FXBW-15/70
CS120XZ-100/465	120	400	215	480	100	50	FXBW-15/120
CS70XZ-120/450	70	413	275	544	120	60	FXBW-17.5/70
CS120XZ-120/450	120	513	275	544	120	60	FXBW-17.5/120
CS70XZ-125/480	70	461	320	550	125	70	FXBW-24/70(20mm/KV)
CS120XZ-125/480	120	490	320	550	125	70	FXBW-24/120(20mm/KV)
CS70XZ-145/745	70	500	355	750	145	80	FXBW-24/70(31mm/KV)
CS120XZ-145/745	120	529	355	750	145	80	FXBW-24/120(31mm/KV)
CS70XZ-185/900	70	541	400	900	180	95	FXBW-36/70
CS120XZ-185/900	120	570	400	900	180	95	FXBW-36/70
CS70XZ-230/1120	70	610	455	1250	230	105	FXBW-36/70(31mm/KV)
CS120XZ-230/1120	120	650	455	1250	230	105	FXBW-36/120(31mm/KV)
CS70XZ-325/1815	70	860	710	2210	325	150	FXBW-72.5/70
CS120XZ-325/1815	120	900	710	2210	325	150	FXBW-72.5/120
CS70XZ-550/3150	70	1220	1055	3400	550	230	FXBW-126/70
CS120XZ-550/3150	120	1255	1055	3400	550	230	FXBW-126/70
CS120XZ-650/3625	120	1475	1270	4100	650	275	FXBW-145/70
CS210XZ-650/3625	160	1654	1485	4495	650	250	FXBW-145/160
CS120XZ-1050/6300	210	2550	2300	8500	1050	460	FXBW-245/210
CS160XZ-1050/6300	160	2430	2200	7000	1050	400	FXBW-252/160
CS120XZ-1425/9075	120	3180	2780	9880	1425	570	FXBW-363/120
CS210XZ-1425/9075	210	3440	3000	10450	1425	570	FXBW-363/210
CS120XZ-2250/13750	120	4450	4050	14100	2250	740	FXBW-550/120
CS210XZ-2250/13750	210	4450	4050	13850	2250	740	FXBW-550/210
