Description

Product Summary

KYN61-40.5 Air insulated metal-clad movable switchgear is an indoor switchgear, assembly operating under the Conditions of 50/60Hz three phase and rated 40.5kV AC voltage, which applied to the transmission and distribution for generators, transformer substations and the industry and mine enterprises. It also can be used to control, protect and monitor electric circuits, and is very useful in frequent operating conditions. It complies with IEC 62271-1, IEC 62271-200 and other relative standards.

Environmental Conditions

Ambient Temperature: No more than +40℃ and no less than -15C. Average temperature is no more than +35℃ within 24 hours.
Altitude: No more than 1000m.
Relative Humidity: the average daily value is no more than 95%, the average monthly value is no more than 90%.
Earthquake Intensity: No more than 8 degrees.
Vapor pressure; average daily value is no more than 2.2kPa, average monthly value is no more than 1.8kPa.
Installation locations without fire, explosion danger, serious pollution, chemical corrosion and violent vibration.

Product Features

The cabinets and partition board adopting hot-dip AI-Zn alloy-coated steel sheet and frame adopting assembled structure make high overall intensity and good earth continuity.
The cabinet is a combined type and the handcart of breaker is floor structure type.
The new composite insulating vacuum circuit breaker has the characteristics of interchangeability and simple replacement.
The handcart adopts screw propulsion mechanism, which moves the handcart easily and prevent mis operation to damage the propulsion mechanism.
All the operations could be done when the cabinet door is closed.
The interlocking between the main switch, the handcart and the switch cabinet adopts the mandatory mechanism of mechanical locking, meeting the functions of five- preventions.
The cable room is spacious and can be connected to a number of cables.
The degree of protection is IP4X，which effectively prevents the equipment from being invaded by sundries and insect pests.
The product runs safely and reliably through the harsh condensation, filth and internal arc tolerance test.

Parameter

Technical Data

No.	Content		Unit	Value
1	Rated Voltage		kV	40.5
2	Rated Current		A	630/1250/1600/2000/2500
3	Rated Frequency		Hz	50/60
4	Power Frequency Withstand Voltage in 1 min	Phase, Earthed	kV	95
4	Power Frequency Withstand Voltage in 1 min	isolating Fracture		110
5	Lightning impulse Withstand Voltage (Peak)	Phase, Earthed		185
5	Lightning impulse Withstand Voltage (Peak)	isolating Fracture		215
6	Rated Current of the Main Busbar		A	630/1250/1600/2000/2500
7	Rated Current of the Branch Busbar		A	630/1250/1600/2000/2500
8	Rated Short-circuit Breaking Current		kA	20/25/31.5
9	Rated Short-time Withstand Current		kA	20/25/31.5
10	Rated Peak Withstand Current		kA	50/63/80
11	Rated Short Circuit Making Current		kA	50/63/80
12	Frequency Withstand Voltage in 1min of Aux Control Loop		V	2000
13	Internal Arc Duration Test (0.5s)		kA	31.5
14	Degree of Protection		IP	IP4X (IP2X when the front door is opened)
15	Rated Voltage of Aux Control Loop		V	AC or DC 110/220

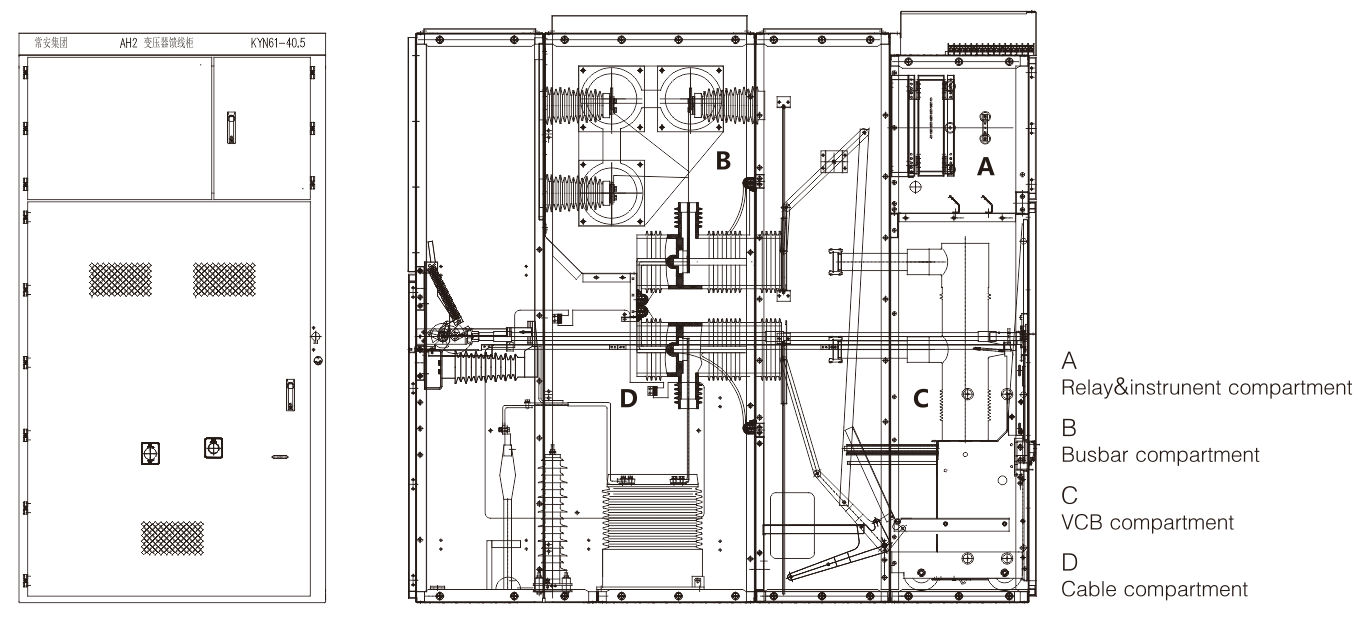

Schematic diagram of structure

Switchgear Dimensions:
(with * is frame size excluding door panel size)

Voltage	Rated parameters	A(mm)	B(mm)	C(mm)	D(mm)
40.5kV	Down line	1400	2600	2650	2800
40.5kV	Overhead cable	1400	2600	2650	3000

Remarks: 1600mm wide cabinet type can be customized.
